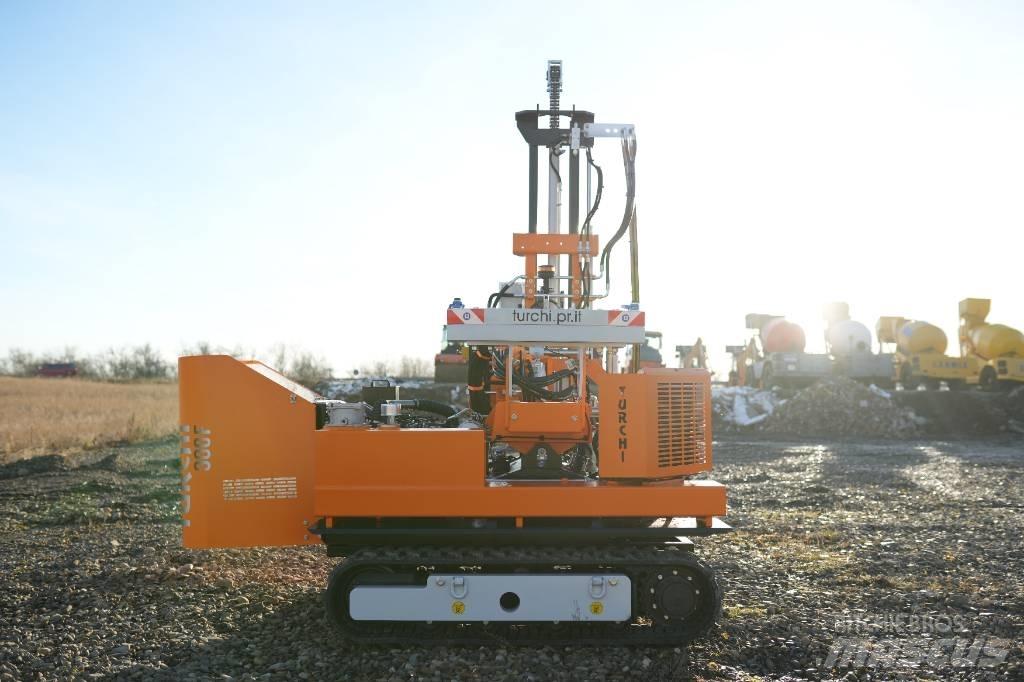

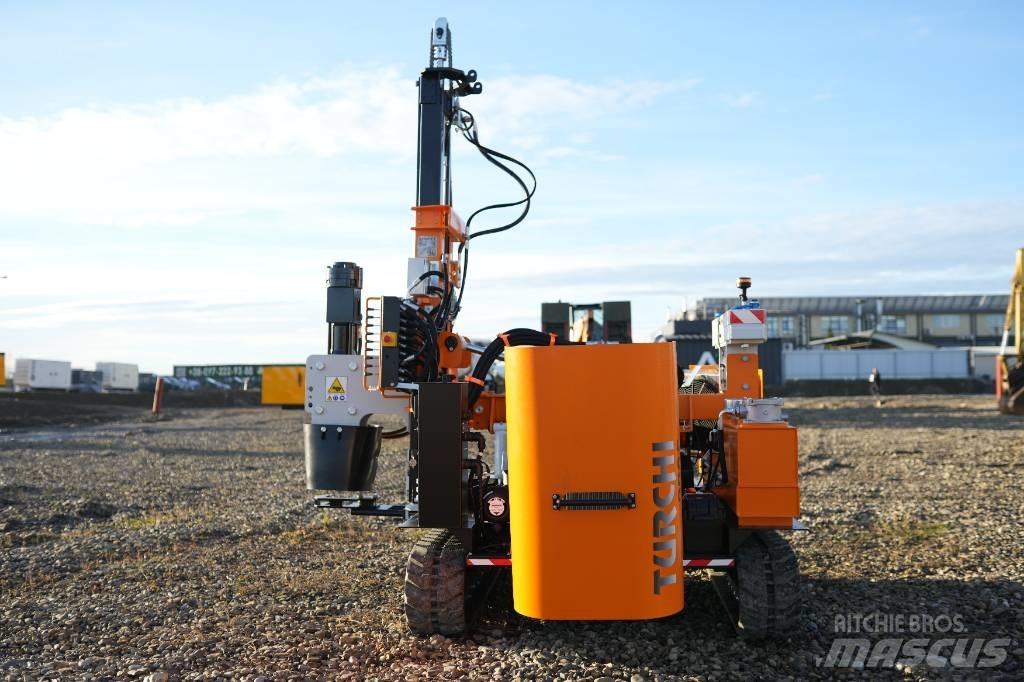

Turchi 300F

Prijs excl. BTW

Geen prijs beschikbaar

FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
report adVerdachte advertentie melden

INFORMATIE

Productcategorie
Hydraulische Boorhamer
Merknaam / type
Turchi 300F
Jaar
2024
Extra opties
Nieuw/ongebruikt
Land
Oekraïne
Mascus ID
67FBA455

DETAILS

Emissieklasse
Fase IIIA
Gewicht
4.800 kg

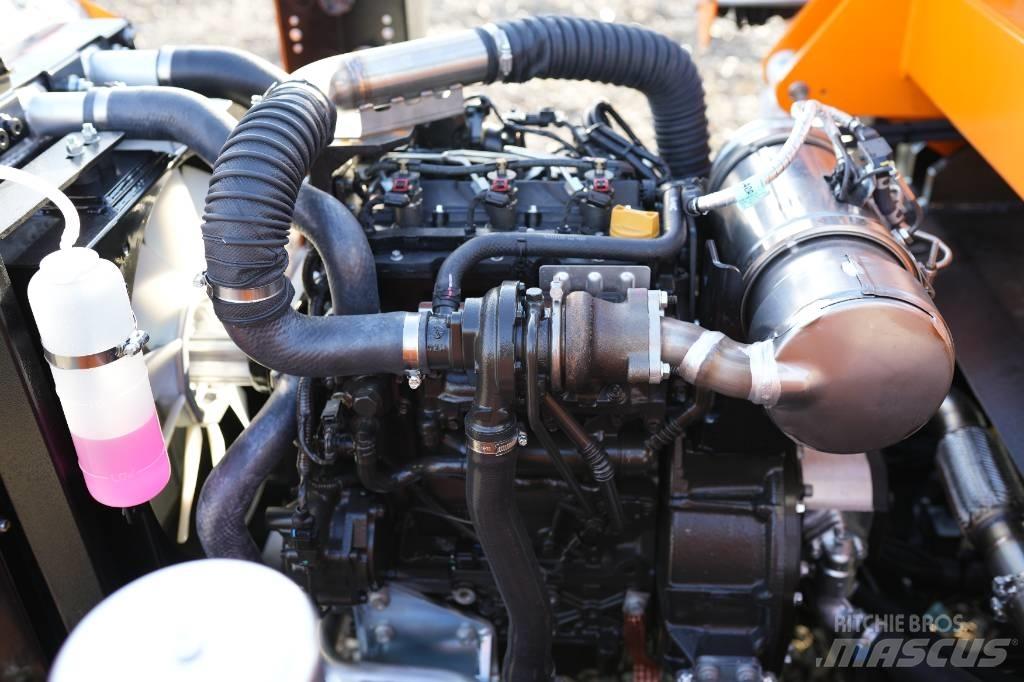

Motor fabrikant
Doosan
Afmetingen (LxBxH)
Length 2.100 mm. Width 2350 mm. Height 2670 mm m
Land van fabricage
Italië
Leveringsvoorwaarden
EXW
Extra informatie
Turchi 300F 2024 Weight kg 4800 Dimensions closed machine with lifted column: Length 2.100 mm Width 2350 mm Height 2670 mm (without pole slide) Movements hydraulic 1. Hammer starter stroke 2. Up/down movement of the hammer trolley 3. In/out movement of the slide stroke 600 mm 4. Stroke translator 130+130 mm 5. Column inclination from +10° to -51° 6. Slide inclination (training) from + 9,5° to -9,5° 7. Down/up movement of the column stroke 500 mm 8. Left track control 9. Right track control Power Oil sets on the machine 180 BAR Hydraulic system to open cicuit Hydraulic pump at gear Capacity oil tank 140 LT Translation's speed of machine 1,92 3,33 KM/H Engagement in HP 47,3 Maximum highest post 4.400 mm ( optional up to 6000 mm) HAMMER Impact power 950/1200 JOULE Impact rate 620÷1.500/570÷1180 Weight 350kg/450 kg Oil flow rate 60÷90 LT.-MIN./ 70÷100 LT.-MIN Power oil sets on the hammer 170 BARAlles bekijken
