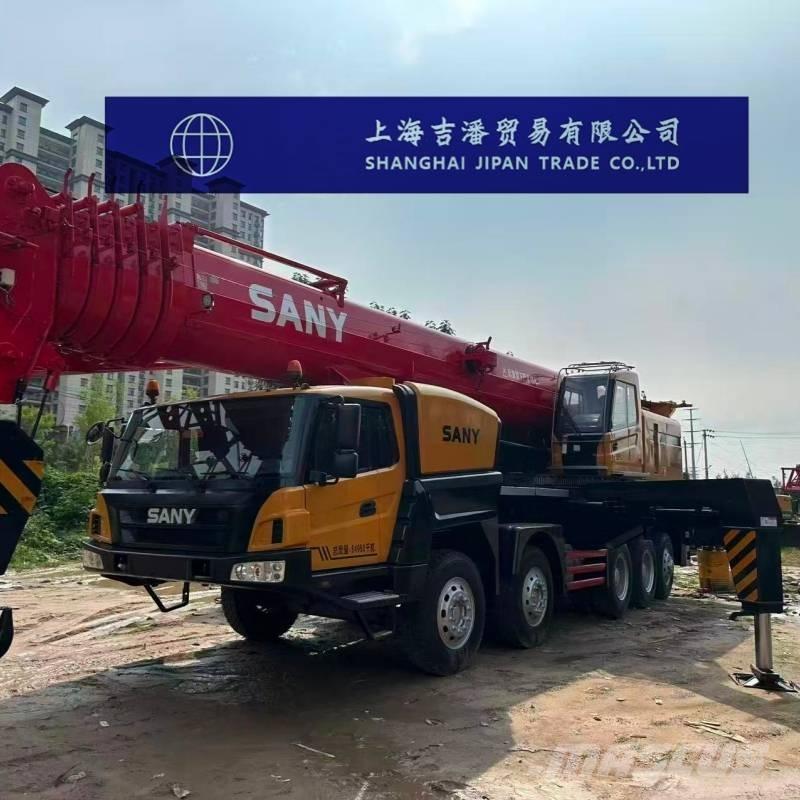

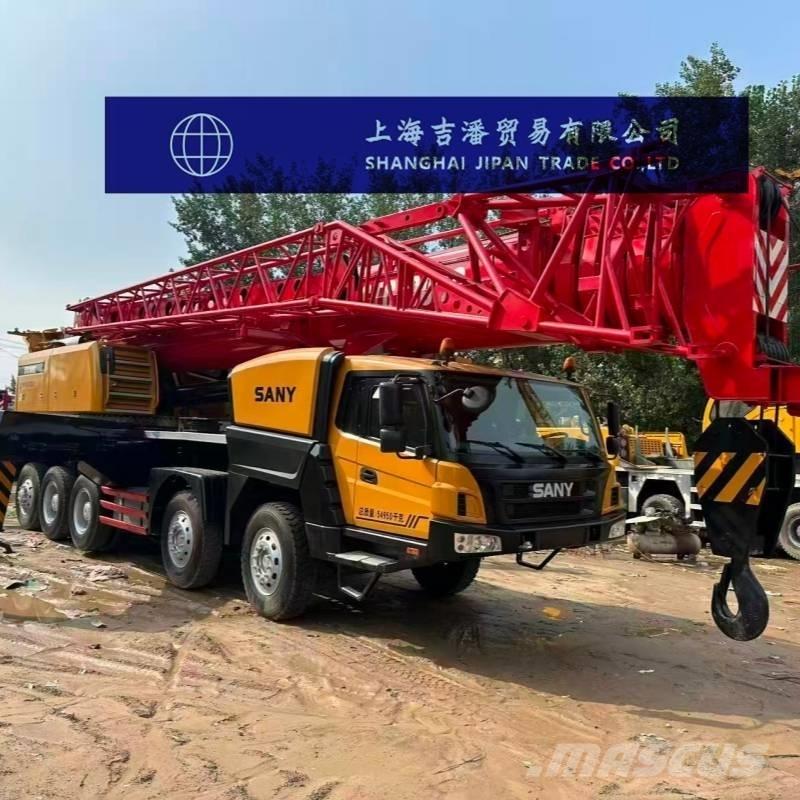

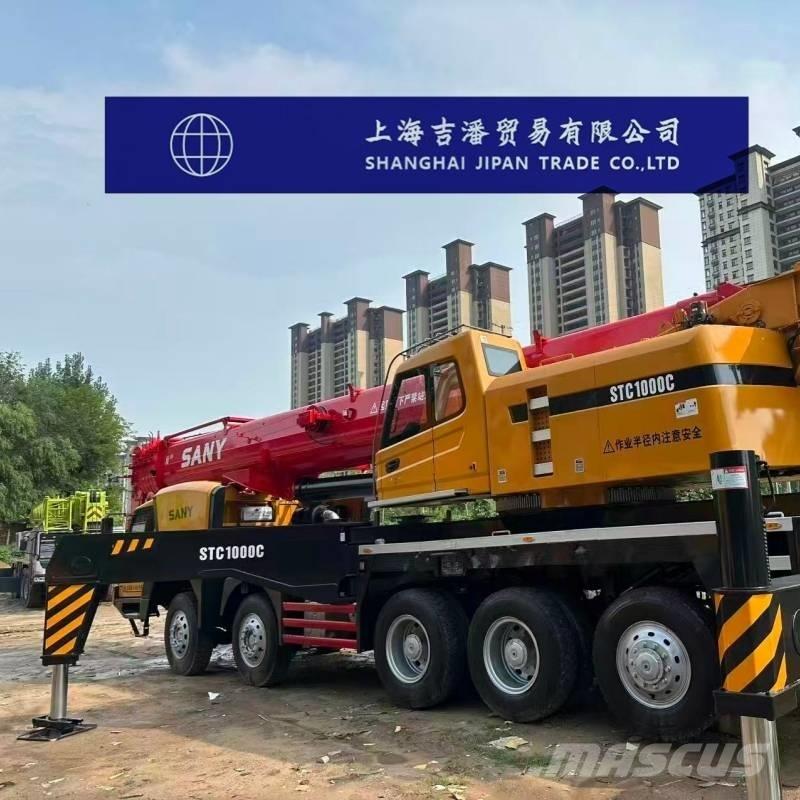

Sany STC 1000

Fly Jib,Hook,Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel. If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Lifting capacity Maximum rated lifting capacity (t):100 Maximum rated lifting moment (KN.m):4320 The maximum rated lifting moment for fully extended boom (KN.m) is 1800 Minimum working range (m)3 Maximum lifting height - base arm (m)13.9 Maximum lifting height - fully extended boom (m)60 Maximum lifting height - basic boom + auxiliary boom (m)78.1 Maximum lifting capacity (tons):91-180 tons Maximum lifting capacity (tons):91-180 tons Boom size The basic number of arm segments is 6 Boom length - basic boom (m)13.25 Boom length - fully extended boom (m)60 Boom length - basic boom + auxiliary boom (m)78.1 The installation angles of the auxiliary boom are 0,15, and 30 Operation speed parameter The maximum lifting speed of the main hoist (m/min) is 135 The maximum lifting speed of the auxiliary hoist (m/min) is 135 The full extension time of the boom (s) is 420/400 The luffing time of the boom (s) is 60/80 Rotational speed (rpm):0 to 2.5 Engine The chassis engine model is Mercedes-Benz OM502 LA Rated power (kw/rpm):375 The engine for the vehicle is either a Cummins QSB6.7 from the United States or a Mercedes-Benz OM906LA.E2/5 Rated power (kw/rpm):144 or 150 Driving parameters Maximum driving speed (km/h):85 Minimum turning radius (m)11 Maximum climbing gradient:45% The approach Angle/departure Angle is ≥21° Minimum ground clearance (mm)310 Overall machine specification The total length of the entire machine is 15,396 mm The full width of the entire machine (mm) is 3000 The total height of the entire machine (mm) is 4000 Working weight (t):54,950 Outrigger span Longitudinal × transverse (m)7.6×7.6
