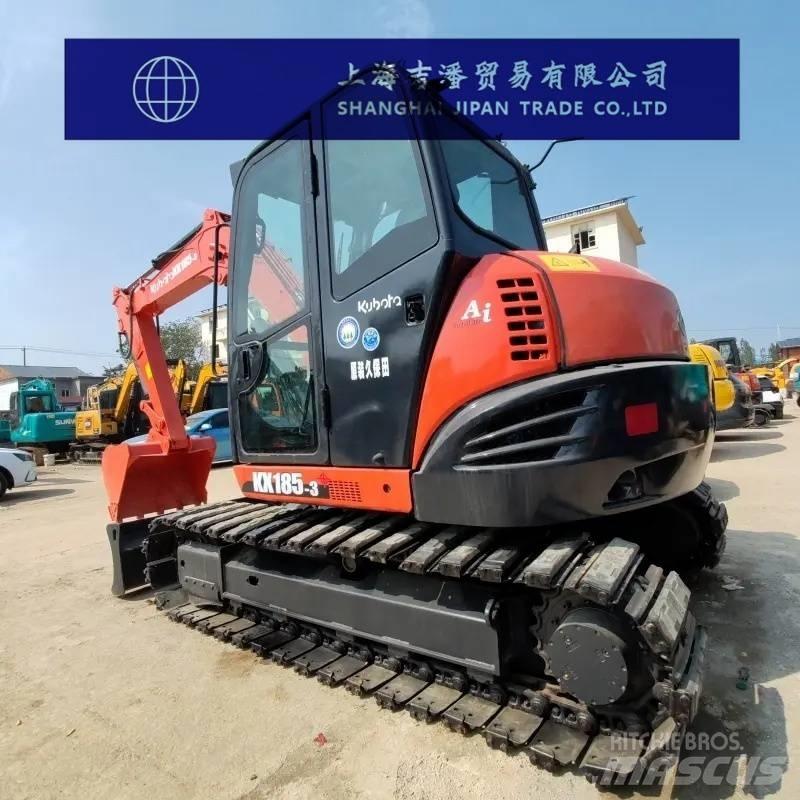

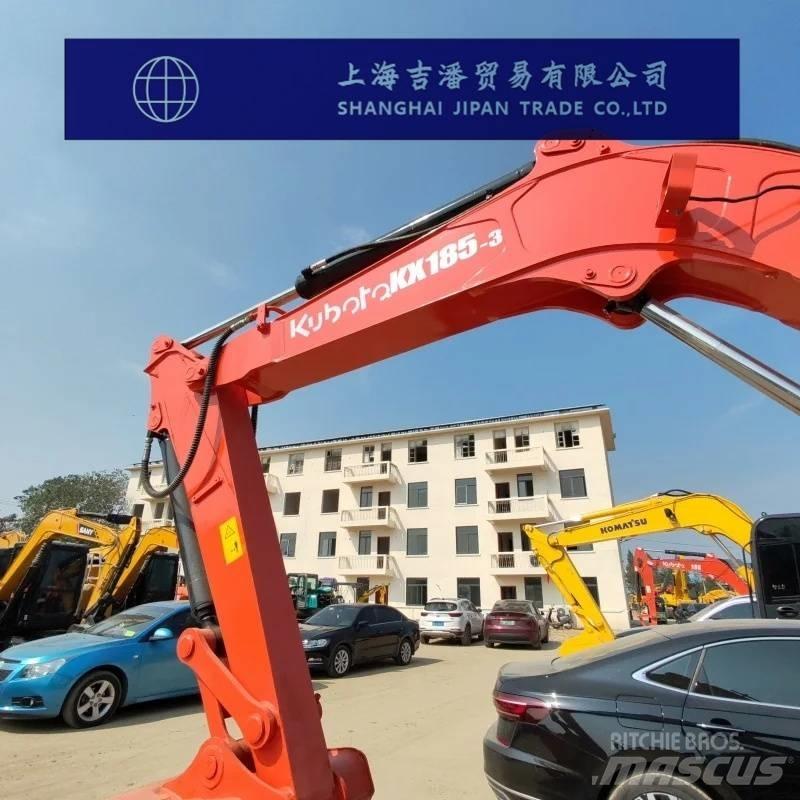

Kubota KX 185-3

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kubota KX185-3 excavator parameter configuration Specification The overall working weight of the machine (kg) is 8245 Bucket capacity (m³)0.35 Tonnage (tons)8 Joint venture/import by manufacturers Power, traditional power Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Rotational speed (rpm)9.5 Climbing ability (%)58/30 degrees Bucket digging force (kN)65.2 Power system The engine model is Kubota V3307Dl-T Rated power (kw/rpm)47.8/2000 Displacement (L) : 3.33 The cooling method is water cooling Hydraulic system The main pump type is variable pump ×2+ gear pump Walking hydraulic motor type: Piston hydraulic motor Rotary hydraulic motor type: Piston hydraulic motor Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)115 Main body size Total transportation length (mm) : 6450 Total transportation width (mm) : 2200 Total transportation height (mm) : 2530 The total height of the cab (mm) is 2530 Track grounding length (mm)2300 Total track length (mm)2840 Track plate width (mm)450 The total width of the track (mm) is 2200 Track gauge (mm)1750 Minimum ground clearance (mm) : 390 The minimum turning radius (mm) of the front-end working device is 2410/2000 The rear end rotation radius (mm) is 1460 Scope of work Maximum excavation radius (mm) : 7010 The maximum excavation radius (mm) of the shutdown surface is 6850 Maximum excavation depth (mm) : 4290 Maximum excavation height (mm)7040 Maximum unloading height (mm) : 4980 The maximum vertical excavation depth (mm) is 3490 The width × height (mm) of the push board is 2200×500 The lifting or pushing depth of the bulldozer blade (mm) is 470/530
