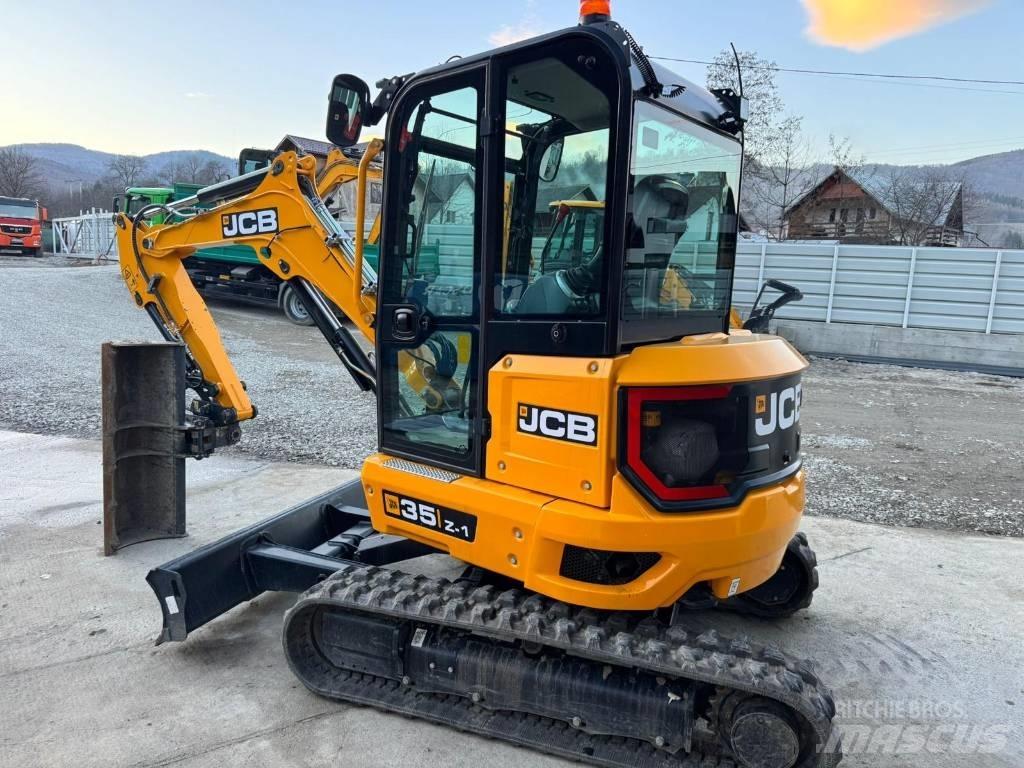

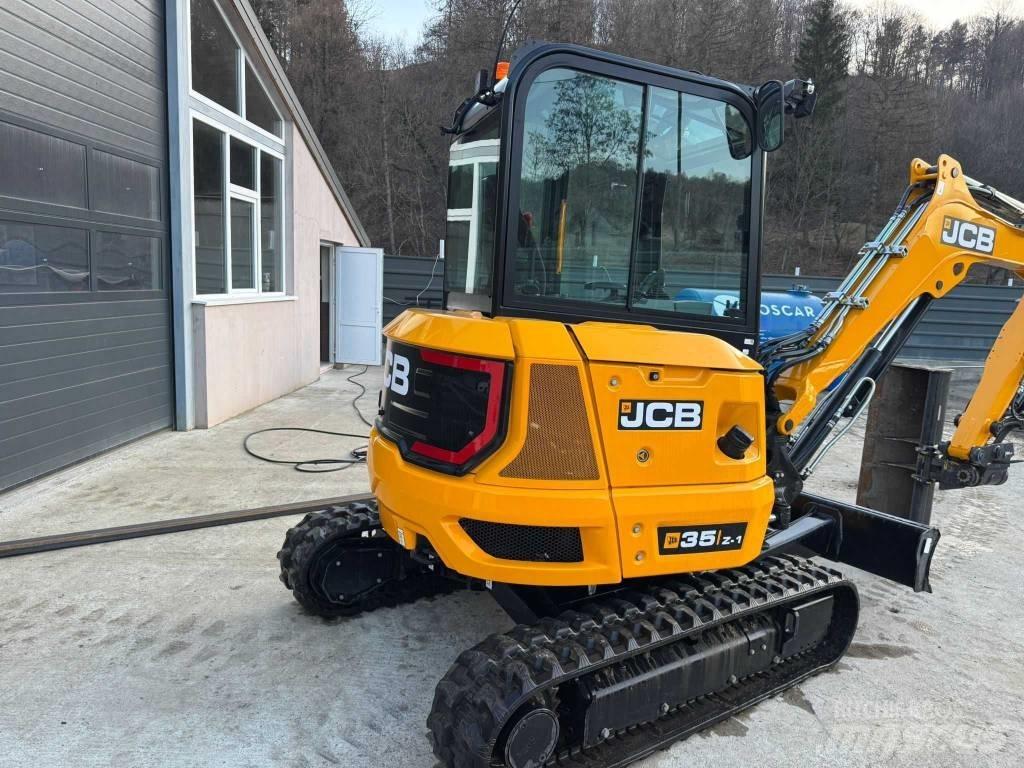

JCB 35Z-1

Prijs excl. BTW

Images6
JCB 35Z-1 Minigraafmachines < 7t
JCB 35Z-1 Minigraafmachines < 7t
JCB 35Z-1 Minigraafmachines < 7t
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productcategorie
Minigraafmachines < 7t
Merknaam / type
JCB 35Z-1
Jaar
2023
Gebruiksuren
102 h
Land
Hongarije
Mascus ID
8D6D640B

PRIJSLIJST

Kies valuta

DETAILS

Totaalgewicht GVW
3.556 kg
Rupsbreedte
300 mm
Afmetingen (LxBxH)
4.85 x 1.75 x 2.48 mm
Originele kleur
Yellow
Lengte lepelsteel
1.300 mm
Motor vermogen
18,2 kW (24,7 pk)
Motor fabrikant
Perkins
Extra informatie

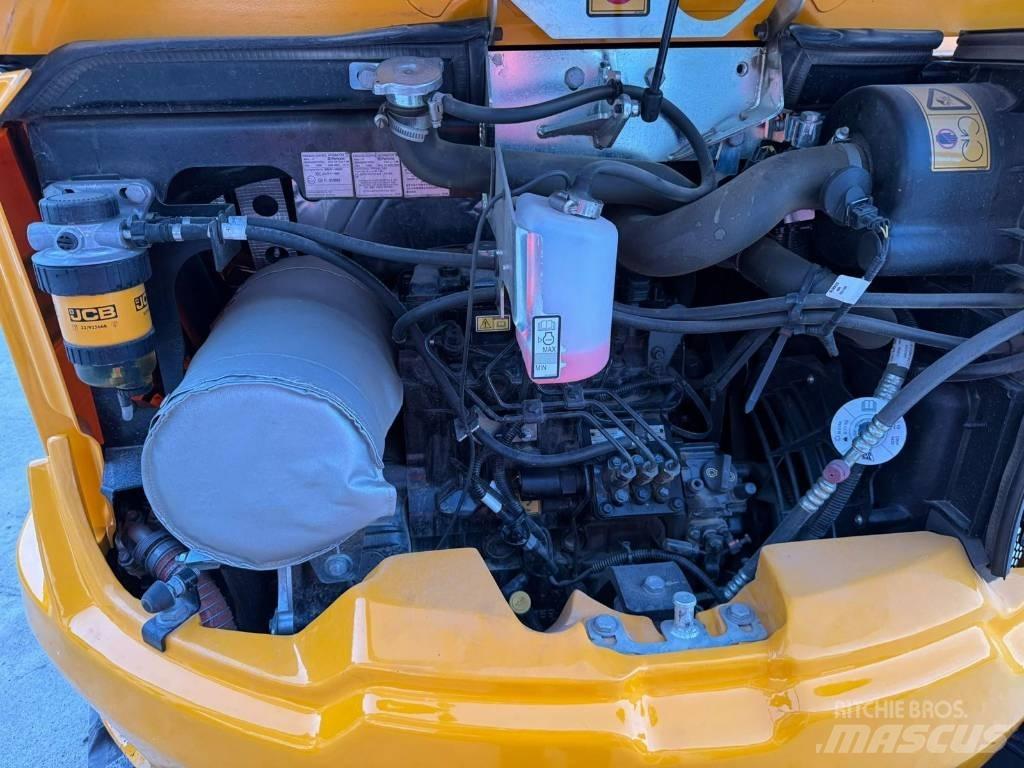

MINI EXCAVATOR JCB 35Z-1 + accessories, perfect working condition, like new, under warranty until October 2025 only 100 hours. INVOICE ISSUED. The TILT-ROTATE system in the pictures can also be sold separately. The equipment is as follows: Main Performance Engine power 25 HP Width over tracks 1750 mm Operating weight 3556 Kg Maximum digging depth 3194 mm Breakout force at the arm level 22,500 N Breakout force at the bucket level 32,400 N Maximum unloading height 3378 mm Engine: Perkins 403J-17 Stage V without additional exhaust gas treatment with DPF or Addblue Engine power 25 HP Engine torque 91.9 Nm at 1600 rpm Number of cylinders 3 Cylinder capacity (ccm) 1662 cc Transmission Hydrostatic servo-controlled, independent left-right. Travel speed gear 1 (forward/reverse): 2.8 km/h Travel speed gear 2 (forward/reverse): 4.5 km/h Braking system Hydrostatic braking system Steering system Skid steering Hydraulic system Hydraulic pump with axial pistons and variable flow 76 l/min Maximum auxiliary installation flow 70 l/min Hydraulic filter 10 microns ROPS/TOPS cabin (protected against overturning and falling objects) soundproofed, with heating, ventilation and AC Standard equipment: 1. Fixed gauge 2. Rubber tracks 300 mm 3. Excavation arm 2450 mm with 1300 mm handle 4. ISO type control system 5. Excavation bucket 300 mm 6. Double-way hydraulic installation;--(for pickaxe, drill, etc.) 7. Seat with seat belt 8. Cutting blade bulldozer 1750mm 9. LED work lights mounted on the arm and cabin 10. Rotating beacon 11. Maintenance and operation manual Optional equipment: Excavation arm Quick change attachment device, with mechanical drive Quick coupler bolt kit General purpose excavation bucket, width 600mm Sloping bucket, width 1200mm Original JCB Tilt-Rotate systemAlles bekijken

GLOBAL UNICOF KORLÁTOLT FELELŐSSÉGŰ TÁRSASÁG

KASSAI ÚT 13 5062 KŐTELEK Jász-Nagykun-Szolnok Hongarije
