BIK TC-70

Prijs excl. BTW

Geen prijs beschikbaar

FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
report adVerdachte advertentie melden

INFORMATIE

Productcategorie
Overige hijsinrichtingen
Merknaam / type
BIK TC-70
Extra opties
Nieuw/ongebruikt
Locatie
Milford, Massachusetts
Land
Verenigde Staten
Algemene score
1
2
3
4
5
Mascus ID
B16FC269

DETAILS

Extra informatie

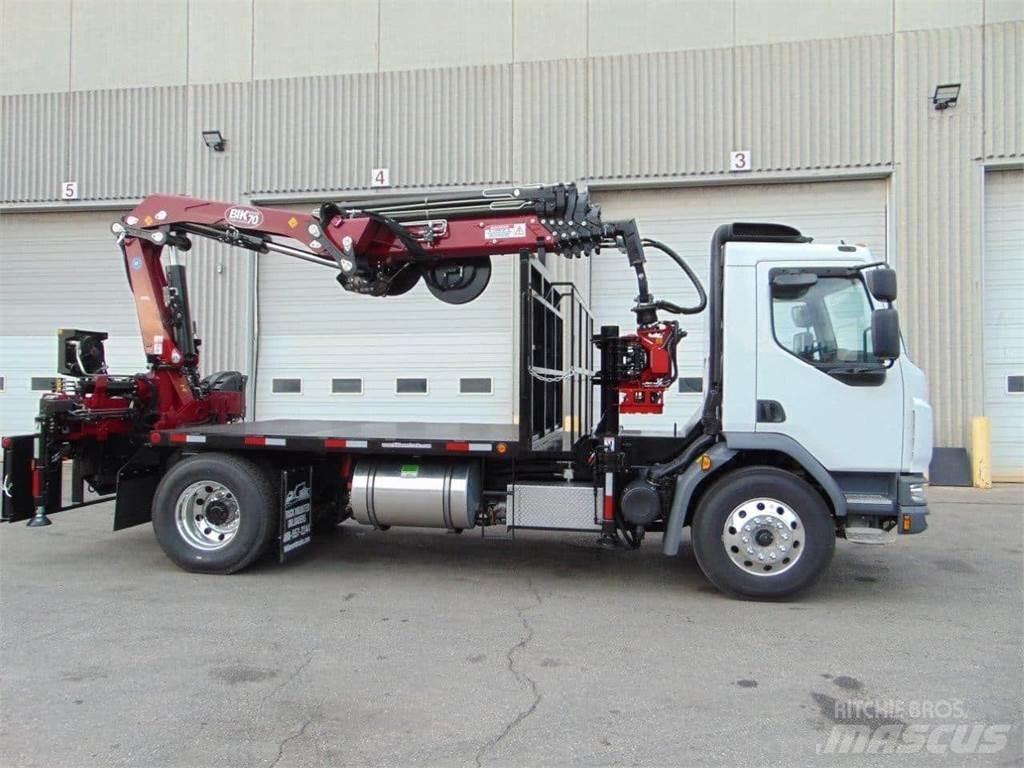

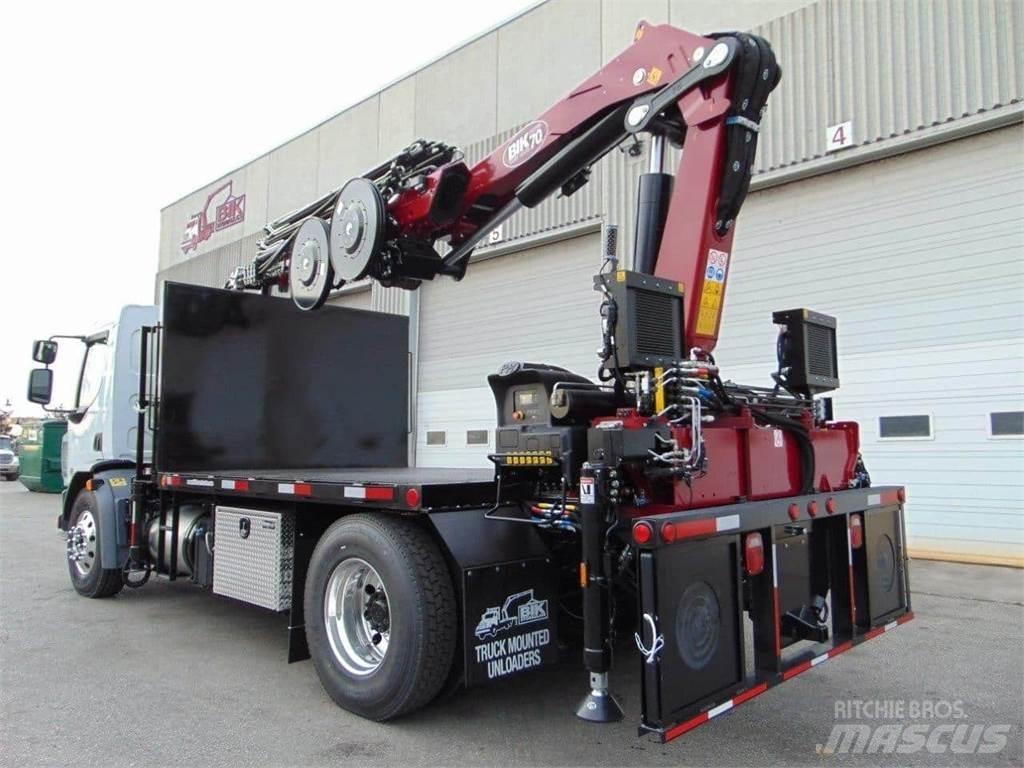

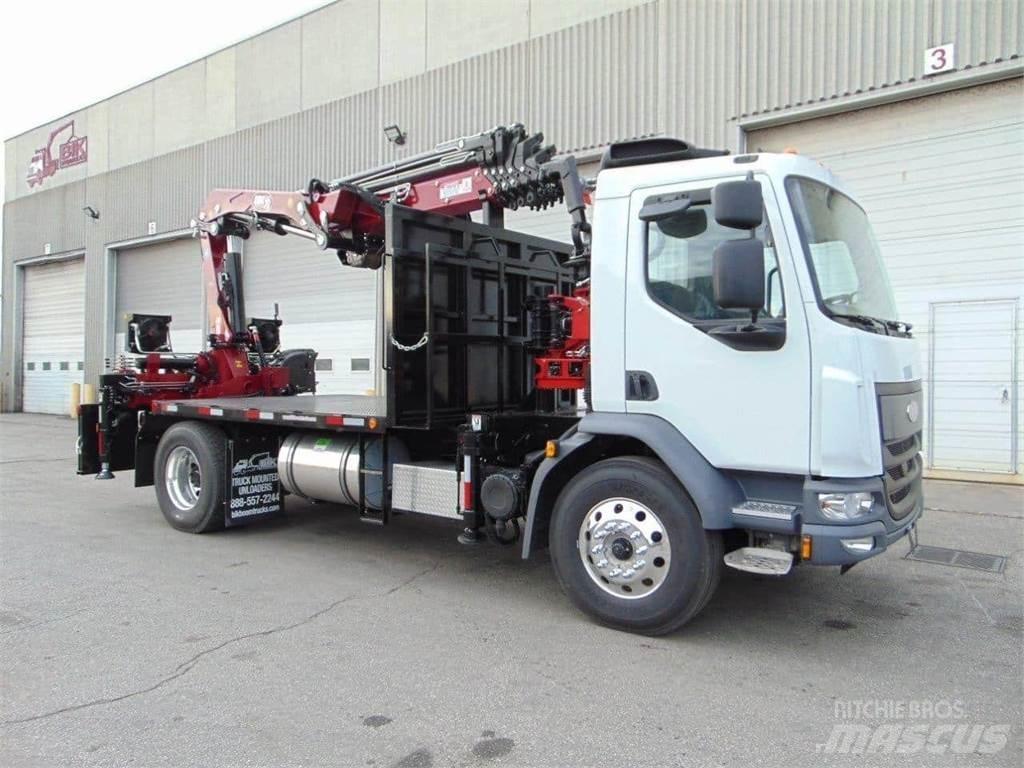

BOOM DETAILS New  – BIK Tree-Care Series TC-70   (PM 23.5 ton/m) :  6-hydraulic extensions & one manual grapple extension Vertical Reach of 70’ Handles 3,800 lbs ... 70’ Vertical HORIZONTAL Capacities: 9,800 lb ... 14’ 5,900 lb ... 20’ 4,330 lb ... 26’ 2,560 lb ... 40’ 1,750 lb ... 55’  408 Degrees Rotation on Main Hydraulic Slewing Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom DANFOSS  Proportional Valve Controls  – single sided operator control station,   Load Holding Valves  on all cylinders PM Power –Tronics  electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote SCANRECO  Radio Remote Control Hydraulic  OUT and Hydraulic DOWN  Extra Wide   – 21’ 6” span  , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder. 15 degree negative angle  on folding arm    –   Hydraulic Overload Protection  – simplified sysTem that prevents boom from overload Two functions plumbed    to end of 6th  extn,   – Heavy Duty Pedestal Turning Cylinders  for greater turning torque & reduced wear Installed at rear on   integral sub base / torque box, Engineer certified stability inspection & certificate, Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components    DECK DETAILS New  – 10’ x 102” Steel Deck  Body 60” steel head board Steel checker plate deck surface Main sil X-braces & support 2-Deck access Ladders at Headboard 2-Ladders at rear Reflectors and Mud-flaps 6 – Sliding Winches and track under deck Painted black. Mat Rack and Grapple Saw Rest Integrated back of cab (ahead of head board) – To carry boom stowed over deck on Head Board with Grapple Attached. TRUCK DETAILS New  – 2023 Peterbilt 220 Cab-Over Single axle Diesel Truck: 26,000 lb end rating – Cummins 260 hp Diesel Allison 6spd Automatic transmission. 12,000 lb rated front axle with 11R22.5 Front tires on polished Aluminum rims 21,000 LB rated Rears on Spring Suspension with 11R22.5 tires on Polished Aluminum outer rims – steel inner Air brakes 180” Wheel Base Truck Features Include:  Air cond., AM/FM  stereo,  Bluetooth, USB port, power windows, tilt steering,  power & heated mirrors, cruise, painted bumper, fog lights, aluminum battery box cover, 75 gal Aluminum fuel tank, engine block heater, etc… Also Included: (2) pcs – 2” PVC stabilizer pads – with holders 36” Alum storage boxes installed Mecanil SG-160 Grapple saw with spare parts kit Grapple saw holder/stowe bracket on side of frame near boom BIK tech to familiarize boom operation at your facility for 2-3 days, Other Additional Available Options: (1) Aluminum self evelling man basket Drawplate  with reese type pintle hook receiver with electric trailer brake actuator installed Additional 3’ Aluminum storage box installed under deck TC-78 version  – with 8’ extra reach , Handling 2,800 lbs ... 78’ Vertical Reach 3 sets – removable log bunks installed on each side of platform Alles bekijken

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts Verenigde Staten
