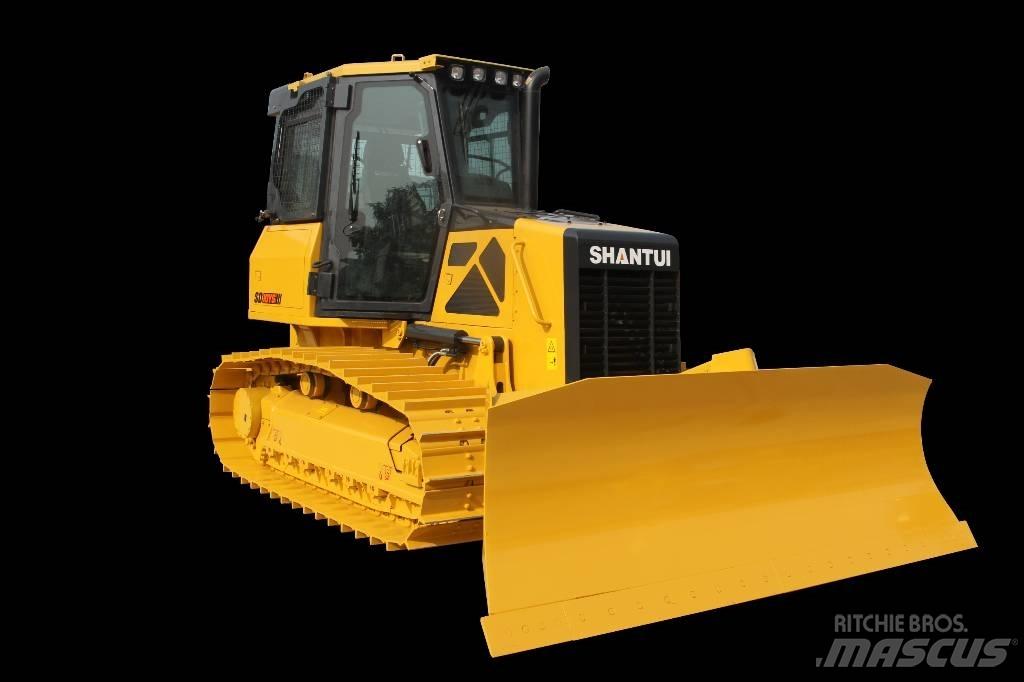

Shantui SD10YE

ITEM 　UNIT SD10YE L×W×H (Ripper not included) mm 4285×2740×2777 Operating weight (Ripper not included) t 9.1 Engine - CUMMINS QSB4.5 Rated power kW/rpm 74/2200 Gradeability ° 30 Blade type - Straight tilt blade Blade width mm 2740×890 Dozing capacity m3 2.2 Ma× drop below ground of blade mm 440 Lift height of blade mm 890 Ripper type - - Ripping depth of ripper mm - Lifting height of ripper mm - Number of carriers (each side) - 1 Number of track rollers (each side) - 6 Number of track shoes (each side) - 39 Width of track shoe mm 460 Track gauge mm 1650 Ground length and ground pressure mm/MPa 2360-0.04 Pitch mm 171.45 Forward speed km/h 0–4.3 0–6.5 0–8.5 Reverse speed km/h 0–4.3 0–6.5
