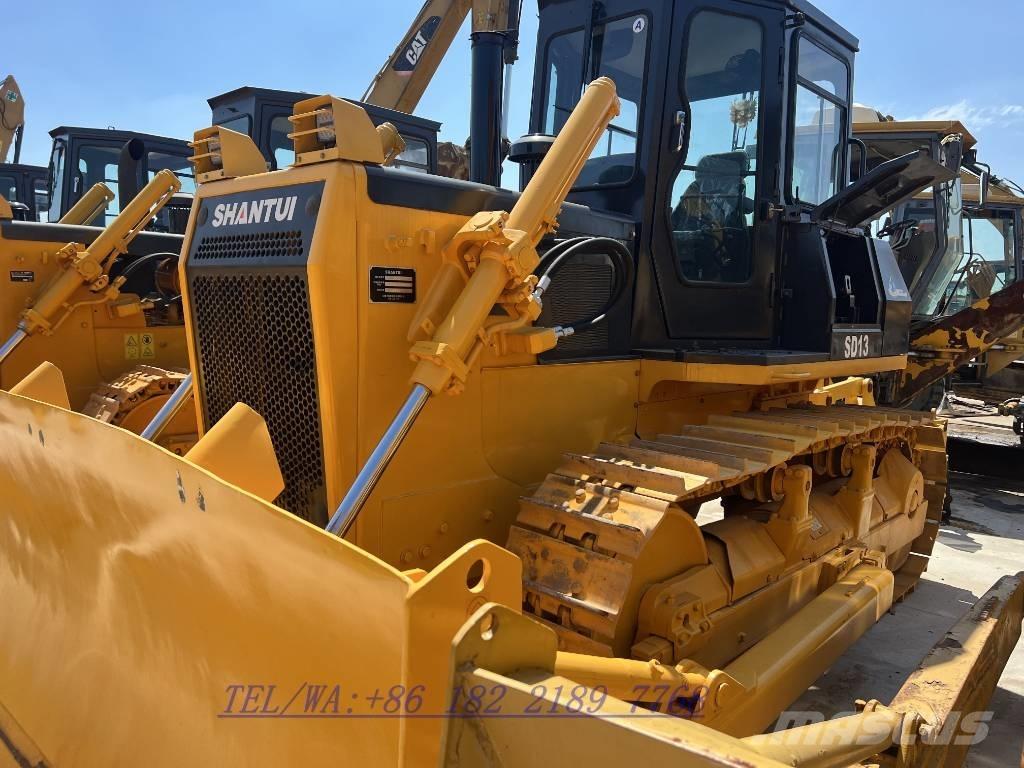

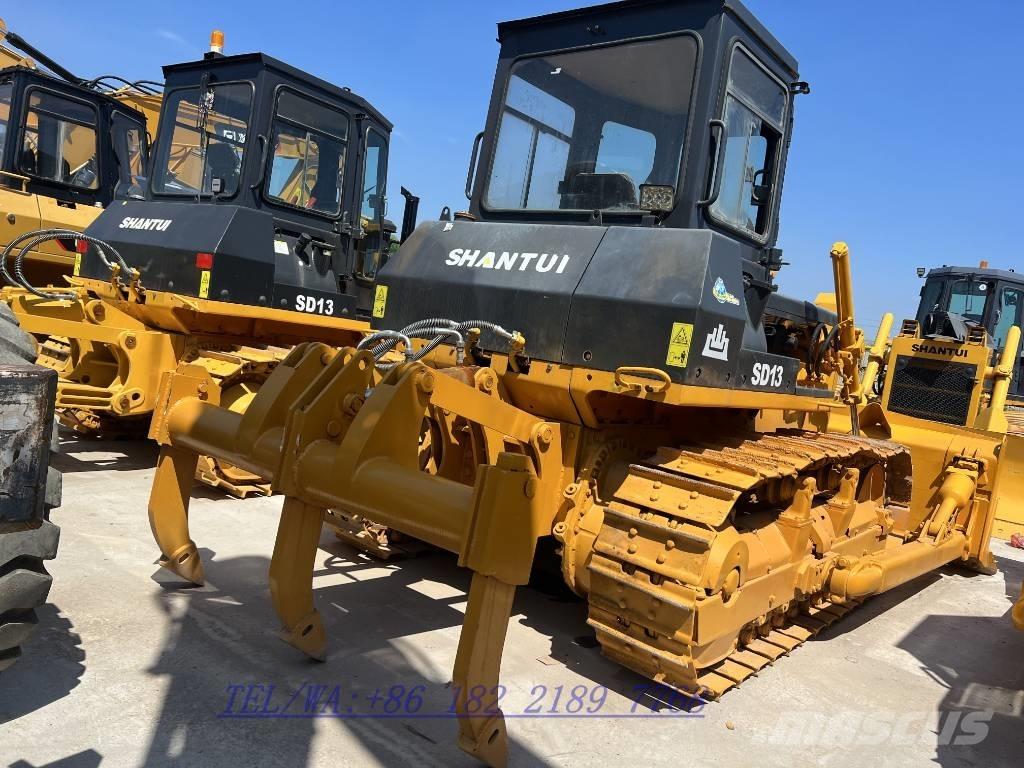

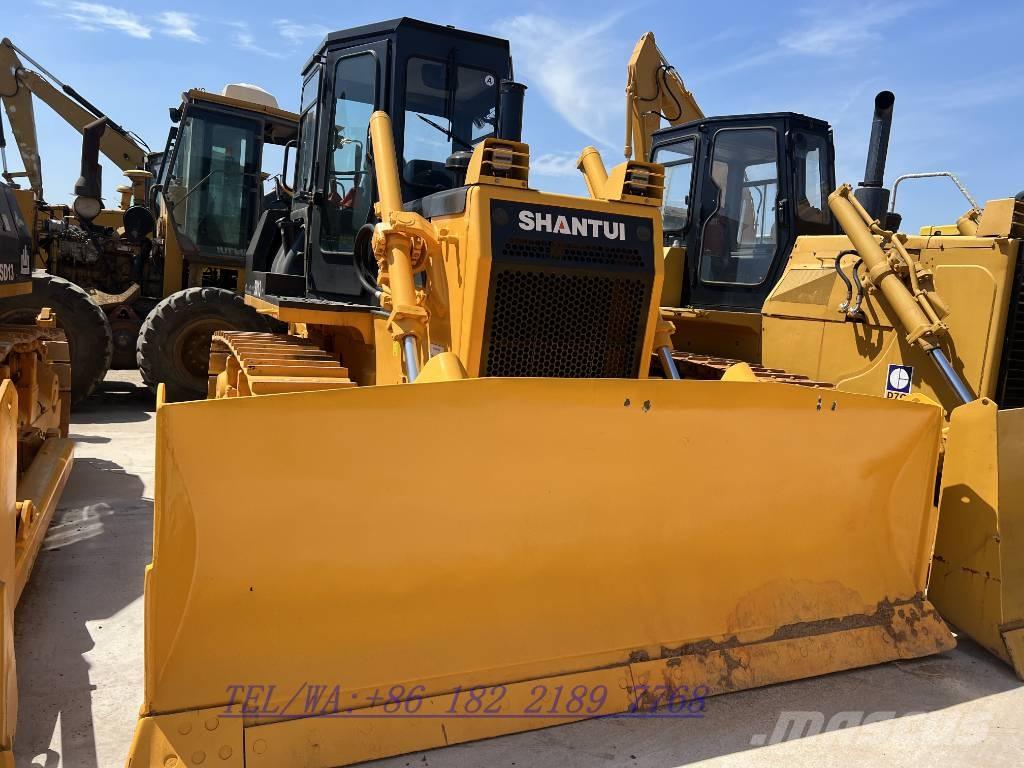

Shantui SD13

Key Specifications Operating Weight: Approx. 15,900 kg (35,050 lb) Power: Engine Model: Cummins NT855 (or a licensed/Chinese-built equivalent like the Shangchai C6121). This is a well-proven, globally available engine. Net Power: 103 kW (140 hp) at 1850 rpm. Blade Capacity: Standard U-Blade: ~ 3.1 m³ (4.1 yd³) Dimensions: Length (with blade): ~ 5.34 m (17' 6") Width (over standard shoes): ~ 3.23 m (10' 7") Height (to top of ROPS): ~ 3.18 m (10' 5") Track Gauge: 1.88 m (6' 2") Track Shoes: Standard Width: 560 mm (22") Ground Pressure: Approx. 64 kPa (9.3 psi)
