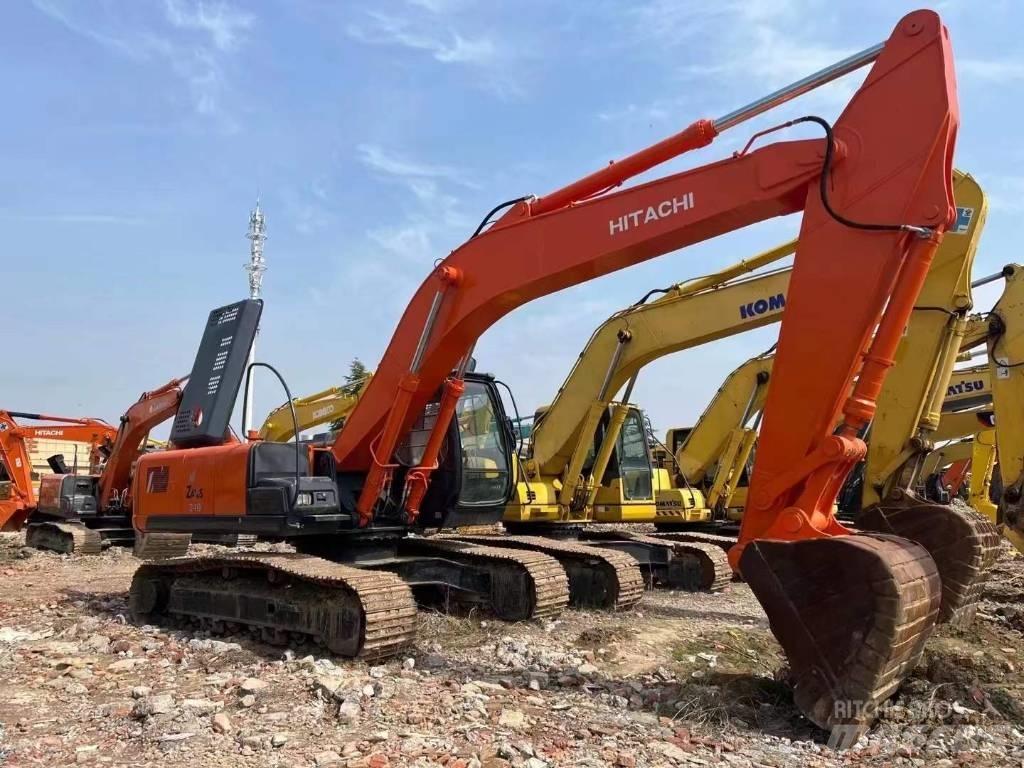

Hitachi ZAXIS240
Prijs excl. BTW
Afdrukken
INFORMATIE
Productcategorie
Rupsgraafmachines
Merknaam / type
Hitachi ZAXIS240
Jaar
2021
Gebruiksuren
886 h
Locatie
金山区, 上海
Land
China
Algemene score
1
2
3
4
5
Mascus ID
5C4FE249
PRIJSLIJST
Kies valuta
DETAILS
Type
Diesel
Aantal vorige eigenaren
1
Onderhoudsgeschiedenis
Ja
Datum van de laatste inspectie
2025-07-08

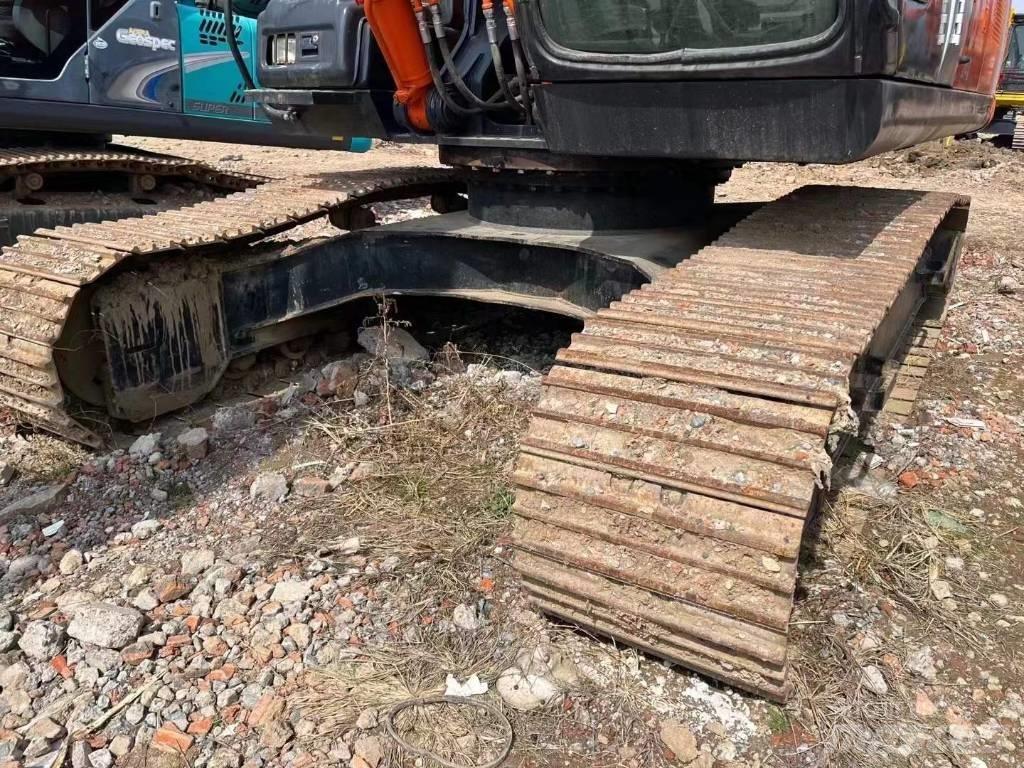

Conditie van het onderstel
good
Totaalgewicht GVW
23.800 kg
Inhoud graafbak
1 m3
Rupsbreedte
600 mm
Originele kleur
yellow
Voorwaarden info/Garantie
good
Land van fabricage
China
Leveringsvoorwaarden
FAS, FOB, CFR, CIF, EXW
Certificaten
EPA, CE, ANSI
Toebehoren
Hello, I'm Gavin, specializing in the sales of construction machinery. We have been working in this industry for decades and have four large machine storage yards in Shanghai. If you are interested in any machines, please feel free to contact me.
WhatsApp/WeChat: 0086 18019214942
Email:
Accessoires
Slangbreukbeveiliging hefcilinder
Slangbreukbeveiliging knikcilinder
Kabelkast
Standkachel
Stuurknuppel
Standaard graafbak
Kabelgraafbak
V sleuvenbak
Extra informatie
Overall machine parameters:
Overall machine working weight: 23800kg
Bucket capacity: 1.0m³
Tonnage: 24 tons
Power system:
Engine model: Isuzu ISUZU AH-4HK1X
Rated power: 132kW/2000rpm
Displacement: 5.193L
Number of cylinders: 4
Cooling method: Water cooling
Notes: Direct injection, turbocharging, with intercooler Hydraulic system:

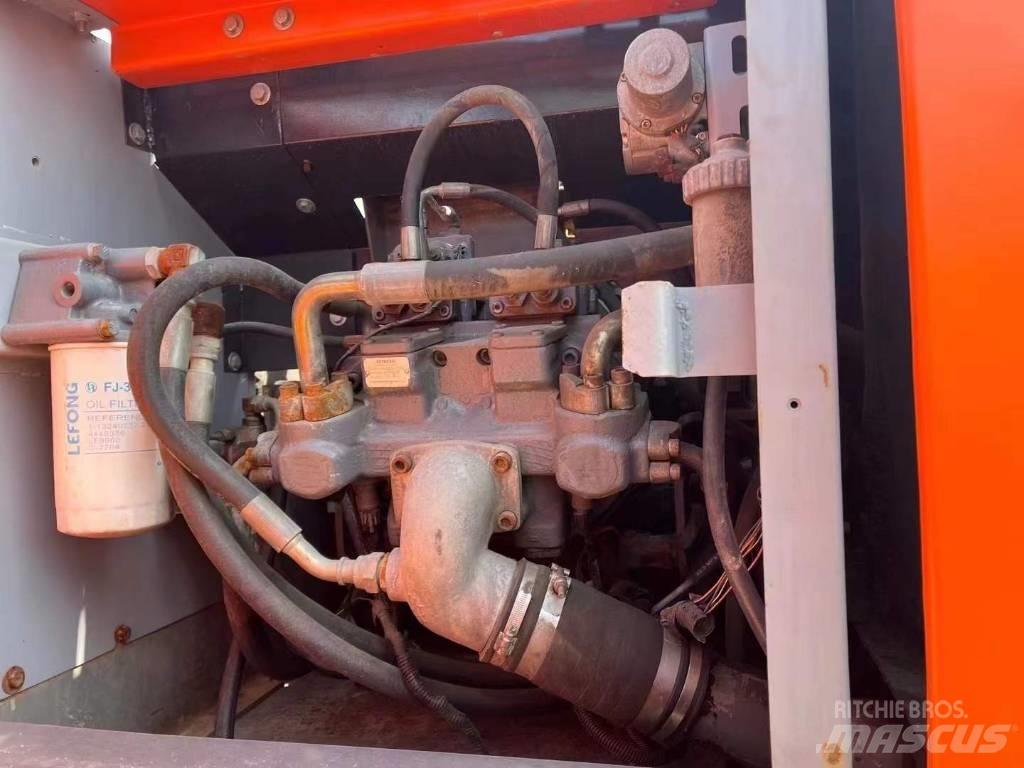

Main pump type: Variable piston pump × 2 + Gear pump × 1
Main pump maximum flow rate: 2 × 224L/min
Main overflow set pressure: 34.3MPa
Travel hydraulic motor type: Variable axial piston motor × 2
Rotary hydraulic motor type: Axial piston motor × 1
Oil capacity:
Fuel tank: 500L
Hydraulic tank: 156L (full tank 243L)
Engine oil replacement volume: 23L
Coolant: 26L
Main body dimensions:
Total transportation length: 10150mm
Total transportation width: 2990mm
Total transportation height: 3070mm
Track ground length: 3460mm
Total track length: 4260mm
Track plate width: 600mm
Track gauge: 2390mm
Minimum ground clearance: 460mm
Rear end rotary radius: 2940mm
Working range:
Maximum digging radius: 10290mm
Maximum digging depth: 6960mm
Maximum digging height: 10160mm
Maximum unloading height: 7200mm
Maximum vertical digging depth: 6030mm
Performance parameters:
Rotary speed: 13.5rpm
Travel speed: 3.4/5.5km/h
Climb ability: 70%/35°
Ground pressure: 52kPa
Bucket digging force: 180kN
Bucket arm digging force: 125kN
