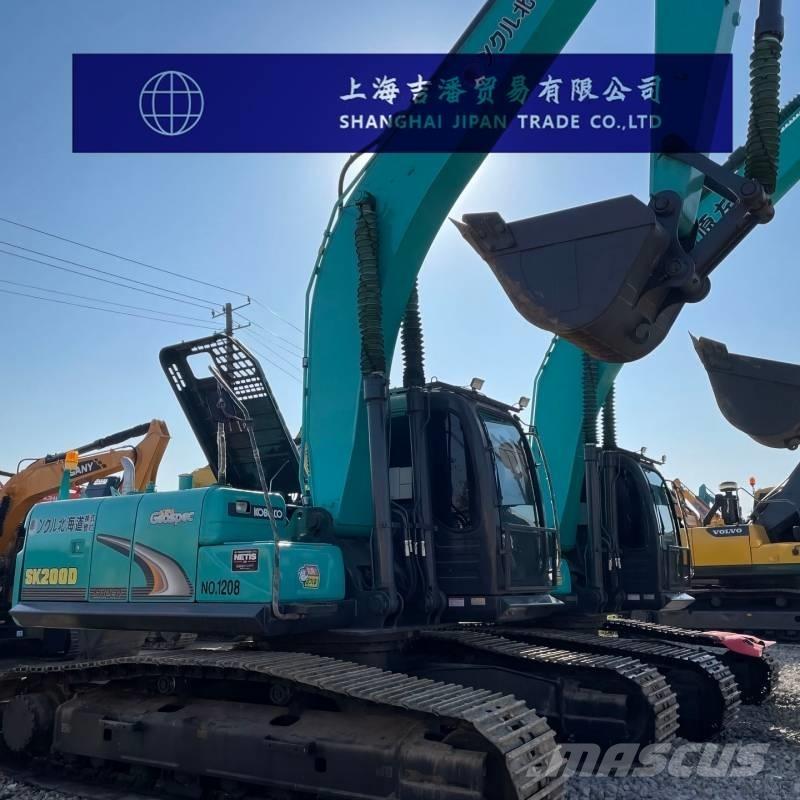

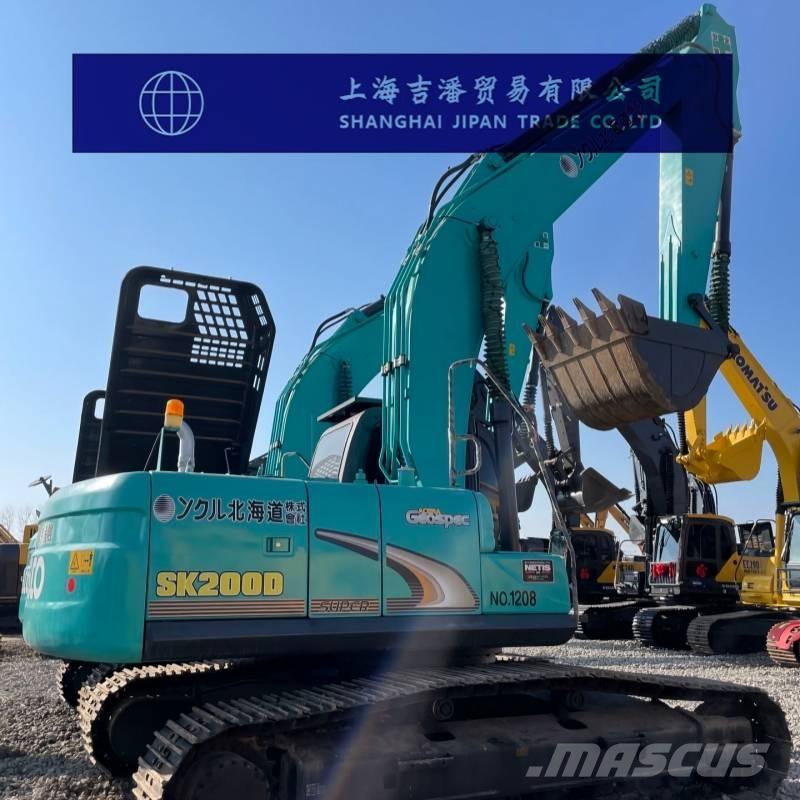

Kobelco SK 200

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel. If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter Configuration of Kobelco SK200 Excavator Specification Tonnage (tons)20 The working weight of the entire machine (kg) is 20,600 Bucket capacity (m³):0.8 The length of the boom (mm) is 2.94 Origin: Japan Performance Rotational speed (rpm):12.5 Walking speed (km/h):3.6/6.0 Climbing ability:70%/35° Ground pressure (Kpa):46 Bucket digging force (kN)143 Bucket shaft digging force (kN)102 Power system Engine model:Hino J05E Rated power (kw/rpm):114/2000 Displacement (L)5.123 Number of cylinders:4 Cylinder diameter × stroke (mm):112×130 The cooling method is water cooling The working mode is direct injection, four-stroke, turbocharged, and built-in intercooling Hydraulic system The main pump types are: double variable displacement axial piston pumps ×2+ pilot gear pumps ×1 The maximum flow rate of the main pump (l/min) is 2×220 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)29 Control hydraulic circuit (Mpa)5 Boom cylinders - number × cylinder diameter × stroke (mm)120×1355 Bucket rod cylinder - number × cylinder diameter × stroke (mm)135×1558 Bucket cylinder - number × cylinder diameter × stroke (mm)120×1080 Is the hydraulic crushing pipeline a standard configuration Oil capacity Fuel tank (L)370 Hydraulic oil tank (L)146 Engine oil change volume (L)22 Coolant (L)22 Main body size Total transportation length (mm):9450 The total transportation width (mm) is 2800 The total transportation height (mm) is 2980 Track grounding length (mm)3370 The total length of the track (mm) is 4170 Track plate width (mm):600/700/800 The total width of the tracks (mm) is 2800 Track gauge (mm):2200 Minimum ground clearance (mm):450 The ground clearance of the counterweight (mm) is 1060 The minimum turning radius (mm) of the front working device is 3540 Rear end turning radius (mm):2750 Scope of work The maximum excavation radius (mm) is 9,900 The maximum excavation radius of the shutdown face (mm) is 9730 Maximum excavation depth (mm):6700 Maximum excavation height (mm):9720 Maximum unloading height (mm):6910 Maximum vertical excavation depth (mm):6100 Maximum effective excavation depth (mm):6520 Width × height (mm) of the bulldozer board without a bulldozer shovel Lifting or deepening with a bulldozer (mm) without a bulldozer
