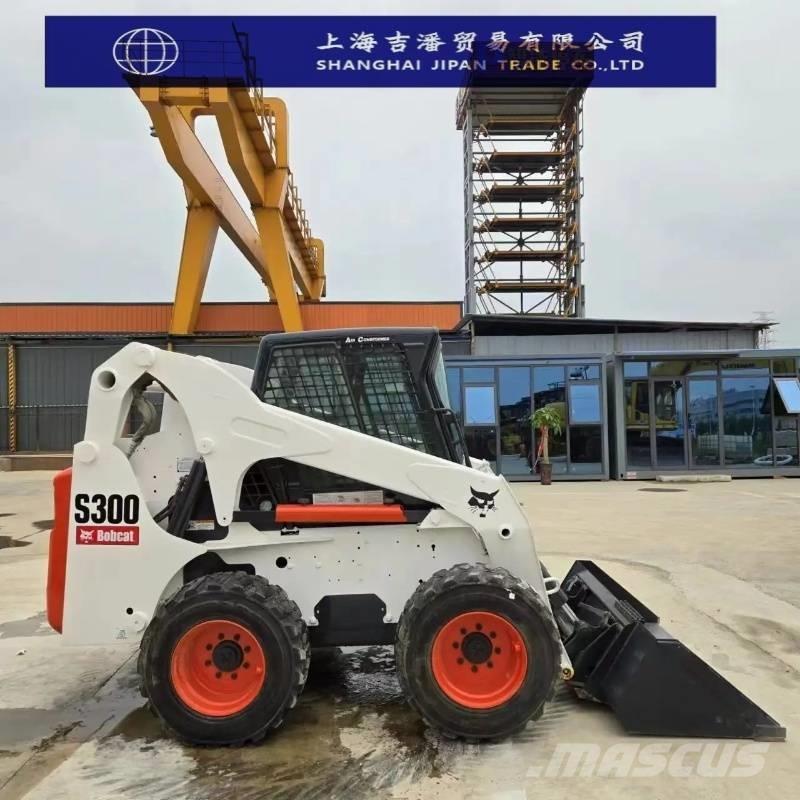

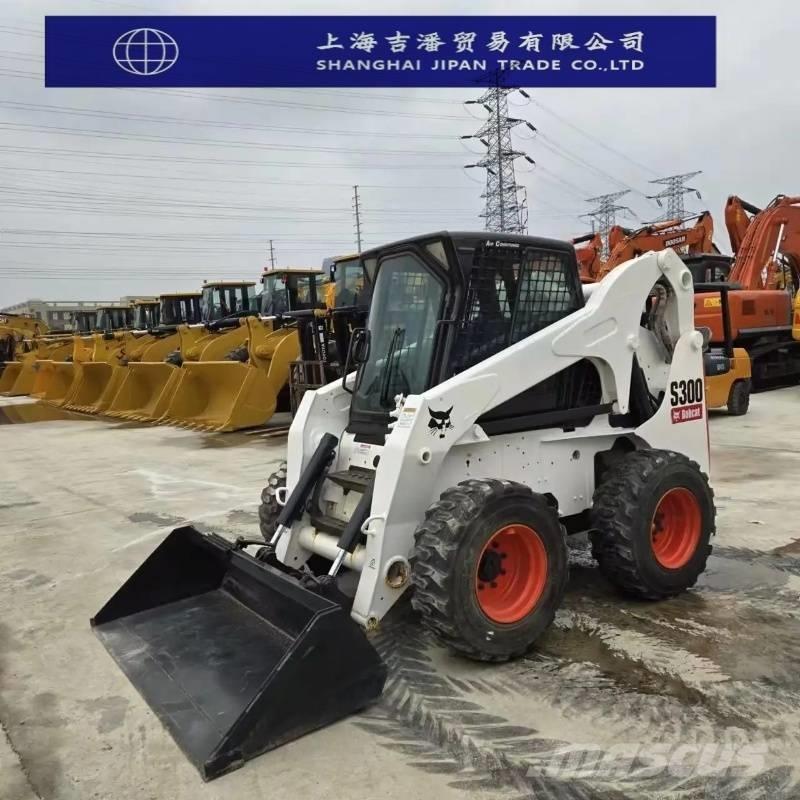

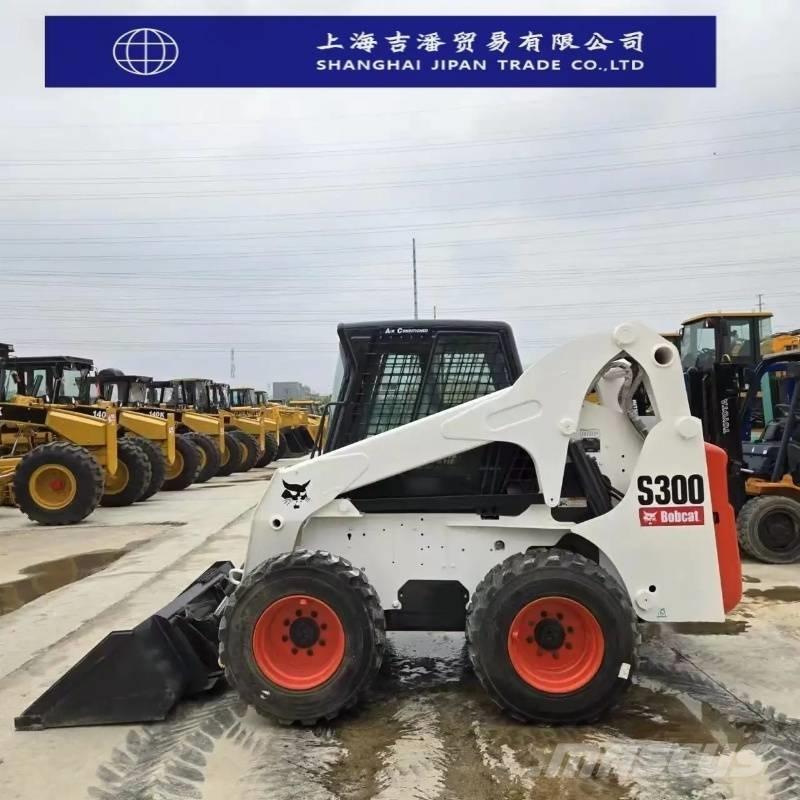

Bobcat s 300
Prijs excl. BTW
Afdrukken
INFORMATIE
Productcategorie
Schrankladers
Merknaam / type
Bobcat s 300
Jaar
2020
Gebruiksuren
2.854 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
BE2C6CD4
PRIJSLIJST
Kies valuta
DETAILS
Type
Diesel
Datum van de laatste inspectie
2025-08-20
Aantal vorige eigenaren
1
Totaalgewicht GVW
1.386 kg
Maximale hefcapaciteit
6.000 kg
Type opbouw
Star chassis
Type cabine
Gesloten cabine
Emissieklasse
Fase V
Motor
original
Inhoud graafbak
0,50 m3
Motor vermogen
60 kW (81,6 pk)
Motor fabrikant
original
Afmetingen (LxBxH)
3630 x 2934 x 2032 mm
Originele kleur
original
Voortbeweging, wielen - rups
Wielaandrijving
Voorwaarden info/Garantie
1 year
Banden merk
original
Resterend profiel voorwielen
98%
Resterend profiel achterbanden
2
Maat achterbanden
original
Maat voorbanden
original
Leveringsvoorwaarden
FCA, FOB, CIF, EXW
Certificaten
EPA, CE
Toebehoren
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs
Accessoires
Stuurknuppel
Extra informatie
Basic Performance:
Rated Operating Capacity: 1386kg
Tipping Load: 2772kg
Operating Weight: 3750kg / 3770kg (high - flow configuration)
Lift Arm Type: Vertical lift
Engine:
Model: Kubota V3800 - DI - TE3
Type: Turbocharged, direct - injection diesel
Rated Power: 60kW (81HP)
Maximum Torque: 295N·m at 1600rpm
Displacement: 3.7L
Number of Cylinders: 4
Mobility:
Maximum Travel Speed: 11.1 / 19.1km/h (two - speed optional)
Tire Size: 12×16.5
Front Turning Radius (with bucket): 2139mm
Departure Angle: 26°
Hydraulic System:
System Relief Pressure: 228bar
System Rated Flow: 78.4 / 140L/min (high - flow configuration, optional)
Fluid Capacities:
Fuel Tank: 87.1L
Working Range:
Maximum Dump Height: 2586mm
Dump Reach (at maximum height): 864mm
Maximum Height of Bucket Hinge Pin: 3272mm
Dump Angle at Maximum Dump Height: 41.9°
Bucket Roll - back Angle on Ground: 30°
Bucket Roll - back Angle at Maximum Height: 96.1°
Overall Dimensions:
Overall Length (with bucket): 3630mm
Overall Length (without attachment): 2934mm
Overall Width (tire edge): 1819mm
Overall Width (bucket edge): 2032mm
Overall Height (to top of cab): 2055mm
Wheelbase: 1227mm
Minimum Ground Clearance: 213mm
