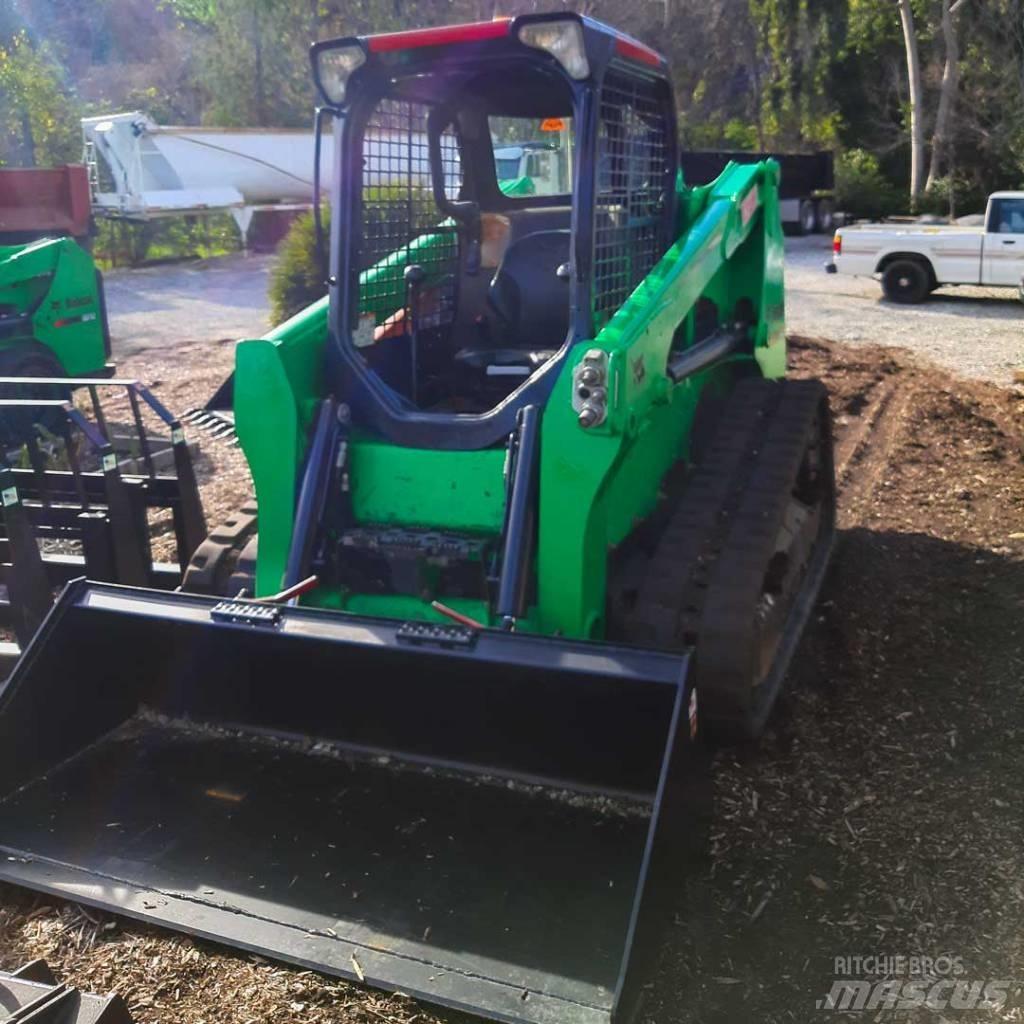

Bobcat T 630
Prijs excl. BTW
10
Favoriet
Delen
Zoekopdrachten bewarenAfdrukken
INFORMATIE
Productcategorie
Schrankladers
Merknaam / type
Bobcat T 630
Jaar
2016
Gebruiksuren
1.900 h
Locatie
Claremont, California
Land
Verenigde Staten
Algemene score
1
2
3
4
5
Mascus ID
C8F120EB
PRIJSLIJST
Kies valuta
DETAILS
Beschadigd
Werkt zoals bedoeld
Motor
V3307-DI-TE3
Motor vermogen
54,7 kW (74,3 pk)
Motor fabrikant
Bobcat
Extra informatie
2016 Bobcat Skid Steer Compact Loader, Kubota Diesel Engine, Liquid Cooled, 74HP, Turbo Charged, Fully Hydrostatic, Rubber Track Drive, AC, & LoJack, All-Maintenance Points Serviced! 1,900 hours, Ready to work!
Engine
-Make: Kubota
-Model: V3307-DI-TE3
-Engine Tier: Interim Tier IV
-Fuel: Diesel
-Cooling: Liquid
-Horsepower: SAE J1995 Gross - 74.3 HP at 2400 RPM ISO 9249 EEC SAE J1349 Net - 70.3 HP at 2400 RPM
-Torque: SAE J1995 Gross - 195.0 ft.-lb. at 1600 RPM ISO 9249 EEC SAE J1349 Net - 186.7 ft.-lb. at1600 RPM
-Low Idle RPM: 1250 - 1450
-High Idle RPM: 2525 - 2650
-Number of Cylinders: 4
-Displacement: 203 cu. in.
-Bore Stroke: 3.70 in. 4.72 in.
-Lubrication: Gear Pump Pressure System with Filter
-Crankcase Ventilation: Closed Breathing
-Air Cleaner: Dry replaceable paper cartridge with separate safety element
-Ignition: Diesel - Compression
-Air Induction: Turbo-Charged
-Engine Coolant: Propylene Glycol Water Mixture
-Starting Aid: Glow Plugs - Automatically activated as needed in RUN position.
Drive System
-Main Drive: Fully hydrostatic, rubber track drive
-Transmission: Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic drive motors
-Tracks (Tension): Grease cylinder and spring
Controls
-Vehicle Steering: Direction and speed controlled by two hand operated steering levers or optional joystick(s)
Loader Hydraulics
-Lift and Tilt: Controlled by separate foot pedals or optional Advanced Control System (ACS)
-Front Auxiliary: Controlled by electrical switch on Right Hand steering lever or joystick
-Auxiliary Pressure Release: Pressure relieved through quick couplers; Push couplers in, hold for 5 seconds
-Engine: Hand lever speed control; key-type start switch or optional Deluxe Instrumentation Panel and function error shutdown.
-Starting Aid: Glow plugs automatically activated as needed by Instrument Panel
-Service Brake: Two independent hydrostatic systems controlled by two hand operated steering evers or optional joystick(s)
-Secondary Brake: One of the hydrostatic transmissions
-Parking Brake (Standard): Spring applied pressure release multi-disk brake activated by manually operated switch on left instrument panel
Hydraulic System
-Pump Type: Engine driven, gear type
-Pump Capacity - Standard: 23.0 GPM
-Pump Capacity - High-Flow Option: 30.5 GPM
-System Relief at Quick Couplers: 3450 - 3550 PSI
-Filter (Hydraulic Hydrostatic): Replaceable beta 10 micron = 200, drop in element
-Filter (Charge): Replaceable beta 10 micron = 200, drop in element
Hydraulic Cylinders: Double-acting; tilt cylinders have cushioning feature on dump and rollback
-Bore Diameter: Lift Cylinder (2) - 2.50 in. Tilt Cylinder (2) - 3.00 in.
-Rod Diameter: Lift Cylinder (2) - 1.75 in. Tilt Cylinder (2) - 1.63 in.
-Stroke: Lift Cylinder (2) - 33.87 in. Tilt Cylinder (2) - 13.97 in.
-Control Valve - Standard: 3-Spool, open center, manually operated with spring detent for lift float and electrically controlled auxiliary spool
-Control Valve - ACS and SJC: 3-Spool, open center with electric actuator controlled lift with float and tilt. Electrically controlled auxiliary spool
-Fluid Lines: SAE Standard tubelines, hoses and fittings
-Fluid Type: BOBCAT FLUID, Hydraulic Hydrostatic 6903117 - (Two - 2.5 Gal.) 6903118 - (5 Gal.) 6903119 - (55 Gal.)
Hydraulic Function Time
-Raise Lift Arms: 3.4 Seconds
-Lower Lift Arms: 3.0 Seconds
-Bucket Dump: 2.3 Seconds
-Bucket Rollback: 1.7 Seconds
Capacities
-Fuel: 27.3 Gal.
-Engine Oil with Filter Change: 12.0 qt.
-Engine Cooling System: with Heater - 3.1 Gal. without Heater - 3.0 Gal.
-Hydraulic Hydrostatic Reservoir: 2.7 Gal.
-Hydraulic Hydrostatic System: 11.0 Gal.
-Hydrostatic Drive Motor (Each): 7.1 fl. oz.
(NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.)Alles bekijken
