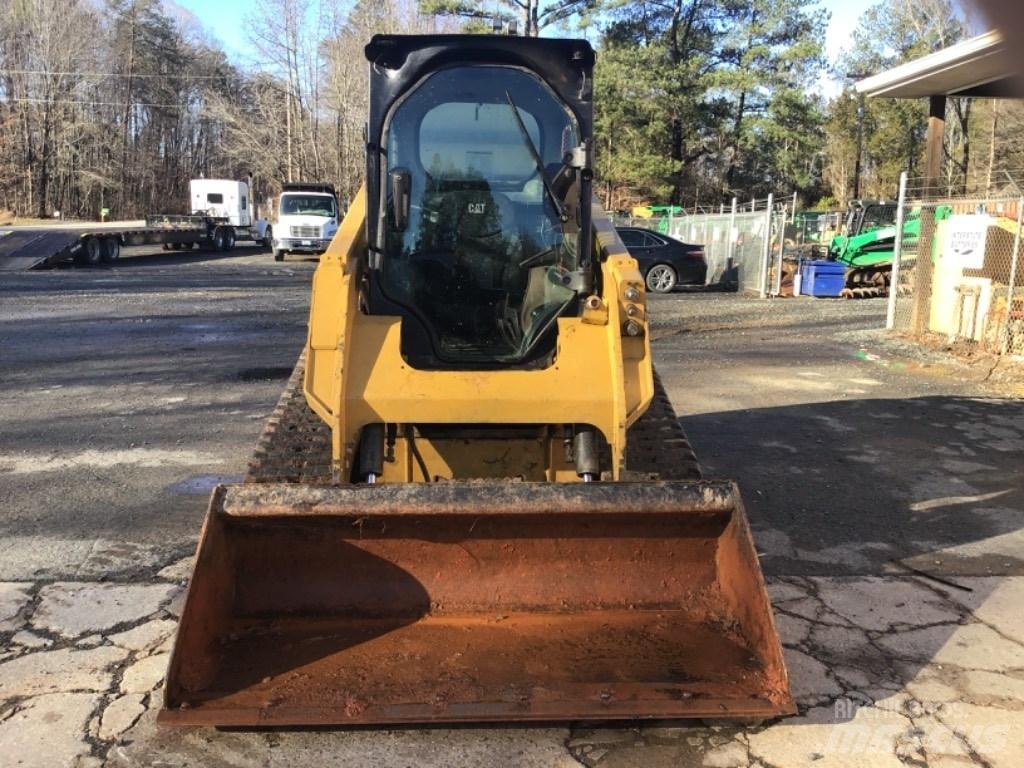

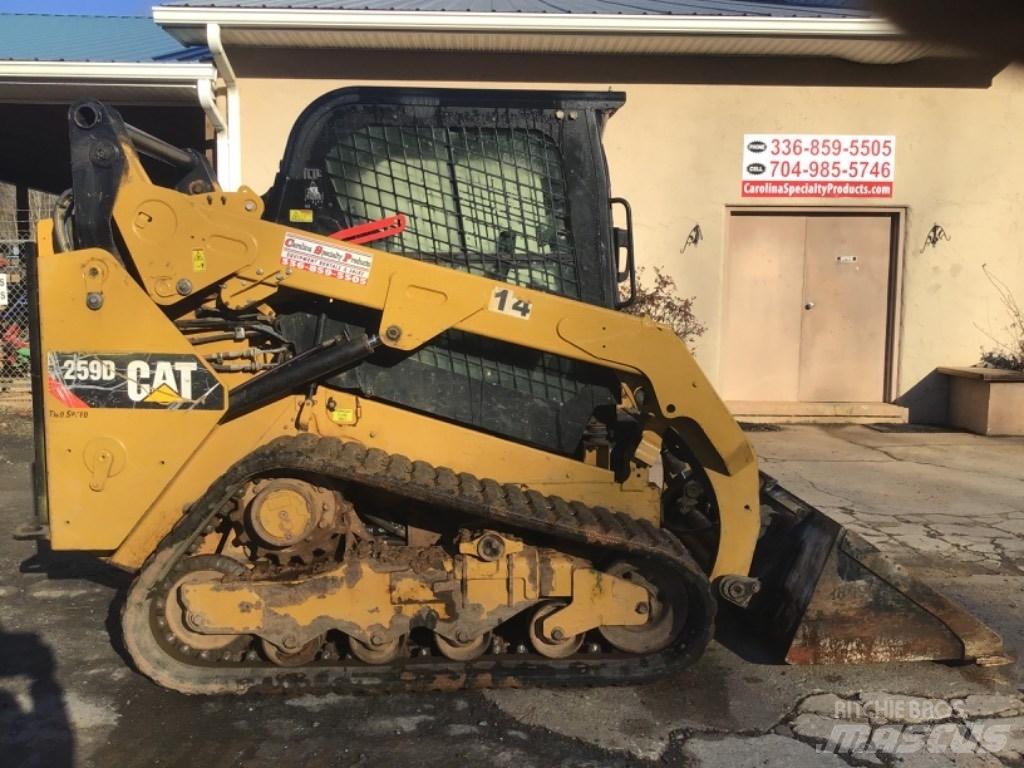

CAT 259D

Name: CAT 259D
Brand: CAT
SKU: 675D23B5
Price: 48800 USD
Availability: InStock

Prijs excl. BTW

Favoriet

Zoekopdrachten bewaren

Afdrukken

INFORMATIE

Productcategorie

Schrankladers

Merknaam / type

CAT 259D

Jaar

2018

Gebruiksuren

1.792 h

Locatie

DENTON

Land

Verenigde Staten

Algemene score

Mascus ID

675D23B5

PRIJSLIJST

Kies valuta

DETAILS

Voorraad nummer

Serienummer

CAT0259DJFTL19596

Totaalgewicht GVW

4.013 kg

Maximale hefcapaciteit

1.406 kg

Type cabine

Gesloten cabine

Motor

DIT Cat C3.3B

Motor vermogen

54,7 kW (74,3 pk)

Motor fabrikant

Mitsubishi

Topsnelheid

13,7 km/h

Afmetingen (LxBxH)

290.58 x 146.05 x 325.37 mm

Originele kleur

Yellow

Extra informatie

Height To Top Of Cab 6.93ft in Ground Clearance 8.9in Clearance At Max Lift And Dump 7.5ft in Reach At Max Lift And Dump 2ft in Clearance At Maximum Lift And Dump 89.9in Departure Angle 35 degrees Dump Angle 52degrees Height - Top Of Cab 6.93ft in Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg 165 lboperator, all fluids, two speed, OROPS, 1676 mm 66 in. dirt bucket, 320 mm 12.6 in tracks, dual flange front idler single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). Bucket Pin Height - Carry Position 7.8in Bucket Pin Height - Maximum Lift 10.09ft in Bucket Pin Reach - Maximum Lift 9.4in Turning Radius From Center - Machine Rear 61.5in Vehicle Width 320 Mm 12.6 In Tracks 66in Vehicle Width 400 Mm 15.7 In Tracks 69in Length - Track On Ground 59in Length - With Bucket On Ground 137.31in Length - Without Bucket 108.9in Length With Bucket 11.44ft in Length With Out Bucket 9.08ft in Maximum Dump Angle 52 degrees Maximum Overall Height 154.1in Maximum Reach - With Arms Parallel To Ground 51.4in Overall Height 12.85ft in Overall Length - Track 78.7in Overall Track Length 6.56ft in Rack Back Angle - Maximum Height 87 degrees Reach - Maximum Lift Dump 23.9in Turning Radius From Center - Bucket 86in Turning Radius From Center - Coupler 54.8in Undercarriage Length Of Track On Ground 11.44ft in Ground Pressure 5.97psi Ground Contact Area 1488.01in2 Specifications Engine Engine Make DIT Engine Model Cat C3.3B Gross Power 74.3hp Net Power 73.2hp Peak Torque 195.5lb ft Torque Measured 1500rpm Displacement 203cu in Bore 3.7in Stroke 4.7in Net Power - Iso 9249 73.9hp Gross Power - Sae J1995 74.3hp Engine Model Cat C3.3B DIT turbo Net Power - Sae 1349 73.2hp Peak Torque - 1,500 Rpm - Sae J1995 195lb ft Operational Operating Weight 8847.2lb Cooling System Fluid Capacity 3.7gal Fuel Capacity 27.8gal Engine Oil Capacity 3gal Hydraulic System Fluid Capacity 13.3gal Operating Voltage 12V Alternator Supplied Amperage 80amps Max Speed - Low Range 6mph Max Speed - High Range 8.6mph Power Train Travel Speed - Forward Or Reverse - One Speed 5.9mph Travel Speed - Forward Or Reverse - Two Speed 8.5mph Loader Breakout Force 5035.4lb Tipping Load 5800.4lb Operating Load 2899.1lb Weights Operating Weight 8945lb Note Operating Weight, Operating Specifications and Dimensions all based on 75 kg 165 lb operator, all fluids, two speed, OROPS, 1676 mm 66 in dirt bucket, 320 mm 12.6 in tracks, dual flange front idler single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler unless otherwise noted Operating Weight - 320 Mm 47;12.6 In Tracks 8846lb Operating Weight - 400 Mm 15.7 In Tracks 8945lbAlles bekijken

Carolina Specialty Products

1816 Badin Road 28001 Albenarle North Carolina Verenigde Staten
