Putzmeister M46-5

Prijs excl. BTW

Images58Videos1

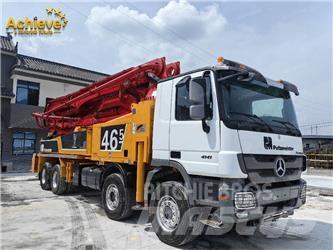

Putzmeister M46-5 Betonpomptrucks
Putzmeister M46-5 Betonpomptrucks
FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
Afdrukken

INFORMATIE

Productcategorie
Betonpomptrucks
Merknaam / type
Putzmeister M46-5
Jaar
2013
Gebruiksuren
3.000 h
Status
Hersteld / Reconditioned,Gereviseerd / Remanufactured
Land
China
Algemene score
1
2
3
4
5
Mascus ID
FF862F64

PRIJSLIJST

Kies valuta

DETAILS

Voorraad nummer
AICPT016
Aantal giekdelen
5
Datum van de laatste inspectie
2024-09-26
Totaalgewicht GVW
32.000 kg
Lengte van kraanarm
300 cm
Maximaal horizontaal bereik
4.110 cm
Maximaal verticaal bereik
4.610 cm
Movement type
Static
Voeding
Diesel
Pomp vermogen
300 kW
Afmetingen (LxBxH)
11850 x 2500 x 4000 mm
Emissieklasse
Fase V
Motor fabrikant
Ergonic3. EU Version
Type pomp
Zuiger
Fabrikant chassis
Mercedes Benz
Banden merk
Mercedes Benz
Leveringsvoorwaarden
FOB, CIF
Certificaten
EPA, CE, TÜV
Toebehoren
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Extra informatie
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducAlles bekijken

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 China
