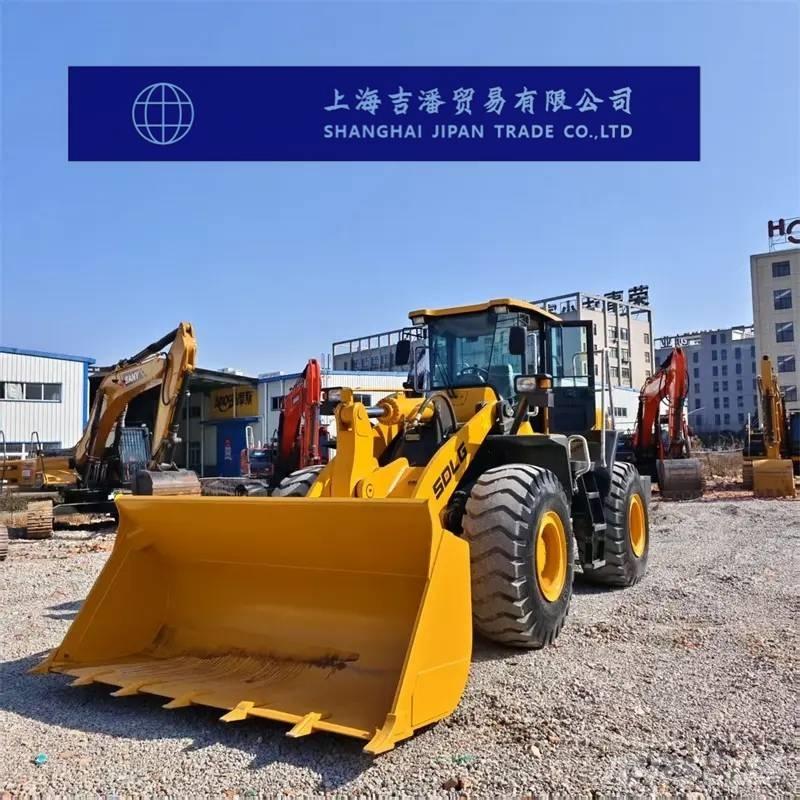

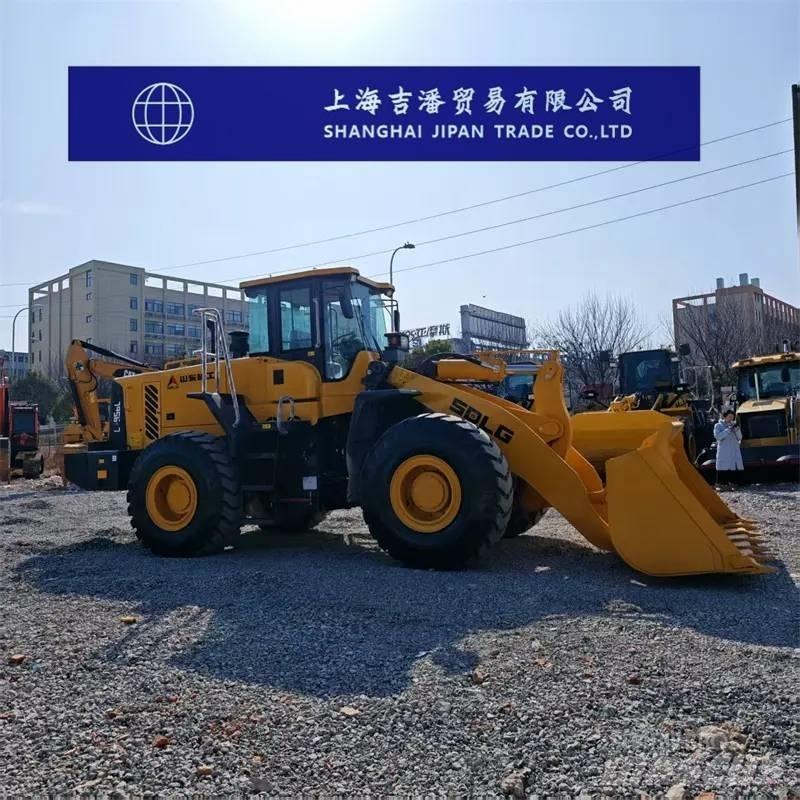

SDLG LG 956 L
Prijs excl. BTW
Afdrukken
INFORMATIE
Productcategorie
Wielladers
Merknaam / type
SDLG LG 956 L
Jaar
2024
Gebruiksuren
300 h
Land
China
Algemene score
1
2
3
4
5
Mascus ID
CAD99AE6
PRIJSLIJST
Kies valuta
DETAILS
Voorraad nummer
1
Serienummer
1
Type
Diesel
Datum van de laatste inspectie
2025-07-07
Aantal vorige eigenaren
1
Totaalgewicht GVW
17.000 kg
Maximale hefcapaciteit
5.000 kg
Kentekennummer
1
Type opbouw
Star chassis
Type cabine
Gesloten cabine
Emissieklasse
Fase V
Motor
Original
Inhoud graafbak
4,50 m3
Motor vermogen
162 kW (220 pk)
Motor fabrikant
Original
Afmetingen (LxBxH)
8430 x 3024 x 3382 mm
Originele kleur
Original
Voorwaarden info/Garantie
Good Condition
Banden merk
Original
Resterend profiel voorwielen
98
Resterend profiel achterbanden
2
Land van fabricage
China
Leveringsvoorwaarden
FCA, FOB, CIF, EXW
Certificaten
EPA, CE
Toebehoren
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessoires
Airconditioning
Aanvullende hydraulica
Motor voorfilter
Puinriek
Zwaailicht
Standkachel
Stuurknuppel
Standaard graafbak
Extra informatie
Main performance parameters
The overall working mass of the machine: 17,000-17,250 kg
Bucket capacity: 2.5-4.5m³, and there are also different configurations such as 2.7m³ and 2.8m³
Rated load capacity: 5000kg
Maximum rise force: ≥180kN
Maximum unloading height: 3180-3700mm, and there is also a claim of 3190mm
Unloading distance: 1090-1160mm, and there is also a claim of 1100mm
Overall machine size parameters
The overall dimensions of the machine (length × width × height) are 8430×3024×3382mm, and there are also descriptions of 8040×3060×3382mm
Minimum ground clearance: 457mm
Wheelbase: 3200mm
Track: 2190mm
Power and transmission parameters

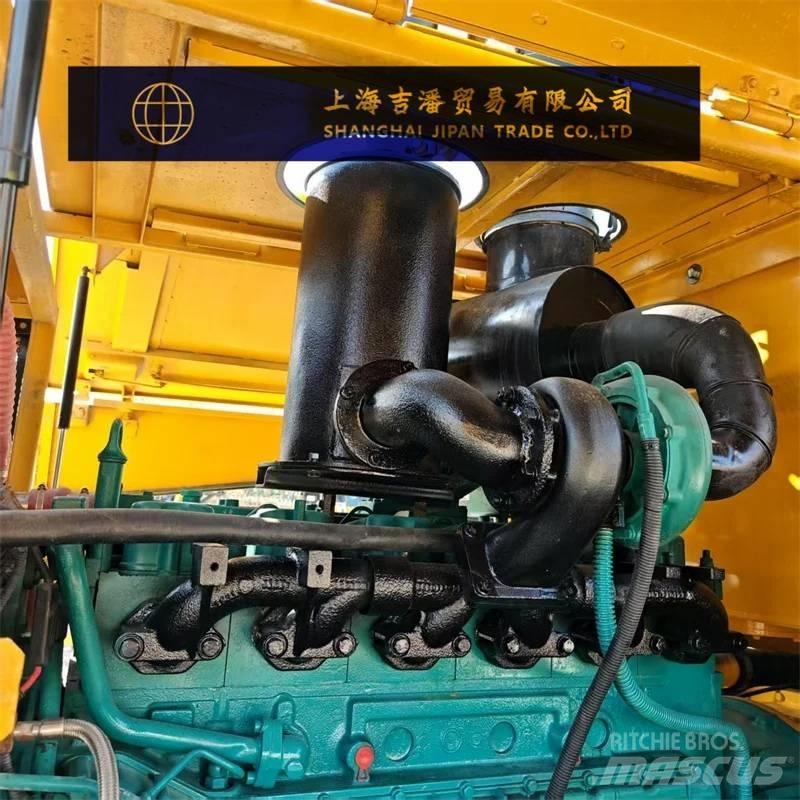

Engine brand and model: Weichai WD10G220ENG33, in-line, water-cooled, dry cylinder liner, electronic fuel injection engine
Rated power/speed: 162kW/2000r/min
Maximum torque: 930N·m
Transmission model: Planetary power shift
Driving speed: 1st gear (forward/reverse) 0-12.0/0-15.8km/h; Gear 2 (forward/reverse) 0-37.8km/h
Other important parameters
Maximum traction force: ≥167kN, and there is also a claim that it is ≥160kN
Maximum climbing ability: 30°
The sum of three items and time: ≤11 seconds
Maximum steering Angle: 38°
Overturning load: 110kN
Fuel tank capacity: 460 liters
Hydraulic system capacity: 210L
Engine oil capacity: 20L
Transmission system capacity: 44L
Other configurations and features
Drive system: tire-type, front-wheel drive
Steering system: Load-sensing full hydraulic articulated steering
Braking system: The service brake adopts the air-top oil caliper disc type, and the parking brake adopts the manual pneumatic caliper disc type
