Vahva FORTI 200

Prijs excl. BTW

FavoriteFavoriet
shareDelen
Save searchZoekopdrachten bewaren
report adVerdachte advertentie melden

INFORMATIE

Productcategorie
Rotators
Merknaam / type
Vahva FORTI 200
Jaar
2015
Extra opties
Ex Demo
Locatie
Saue
Land
Estland
Algemene score
1
2
3
4
5
Mascus ID
24BE0111

PRIJSLIJST

Kies valuta

DETAILS

Voorraad nummer
VR50000
Onderhoudsgeschiedenis
Ja
Past op de volgende machines
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

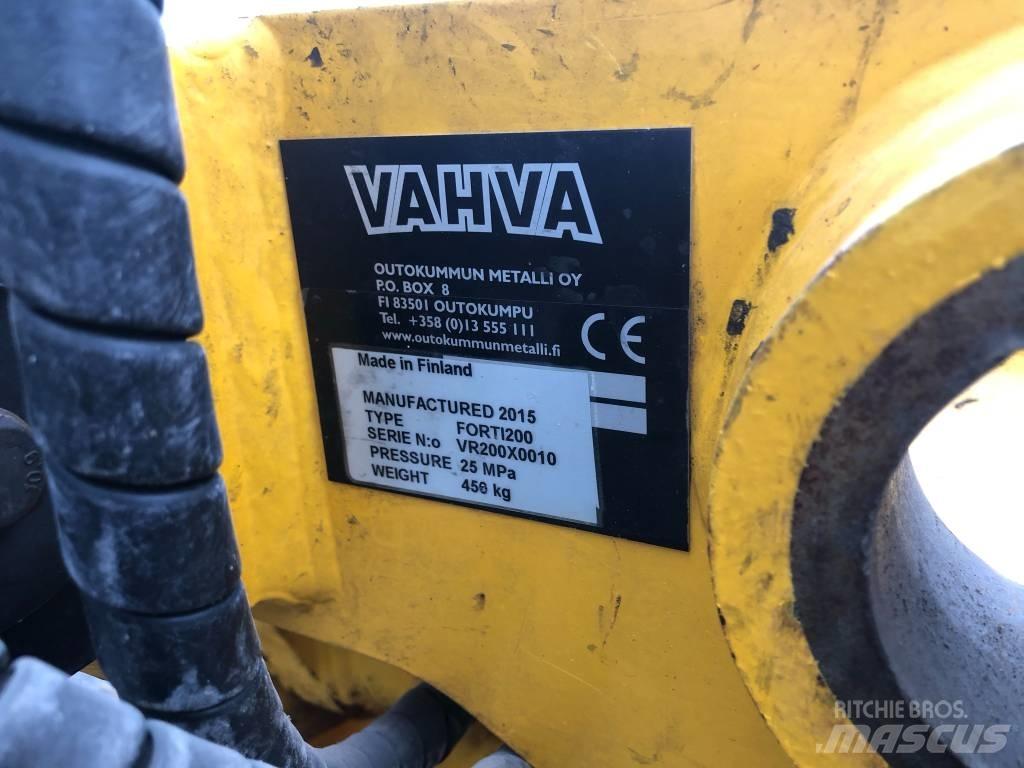

Serienummer
VR200X0010
Bedrijfsdruk
250 bar
Vereiste hydraulische stroming
80 l/min
Gewicht
450 kg
Afmetingen (LxBxH)
990 x 720 x 280 mm
Land van fabricage
Finland
Leveringsvoorwaarden
EXW
Certificaten
CE
Extra informatie

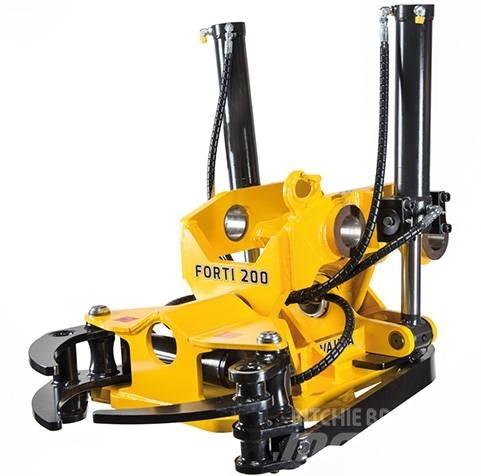

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Alles bekijken
